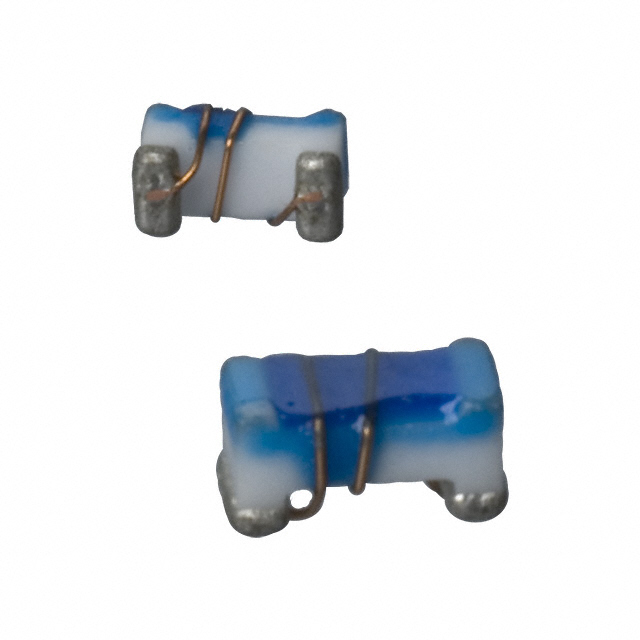

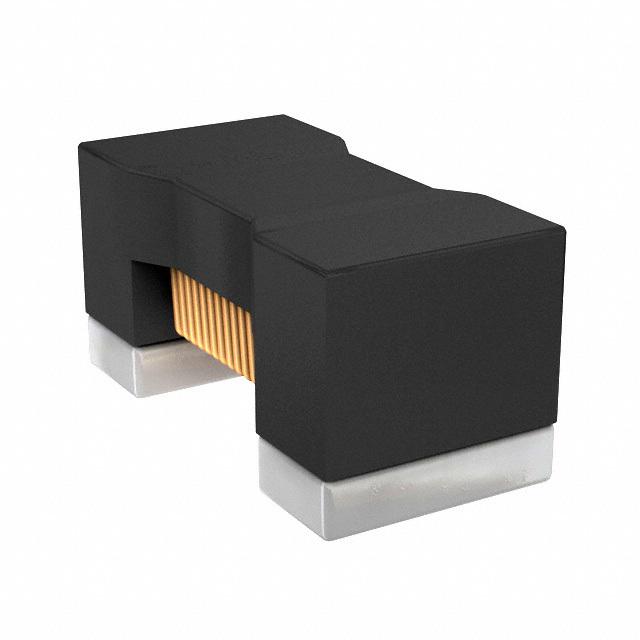

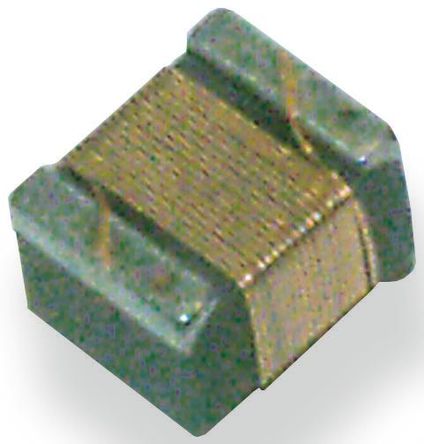

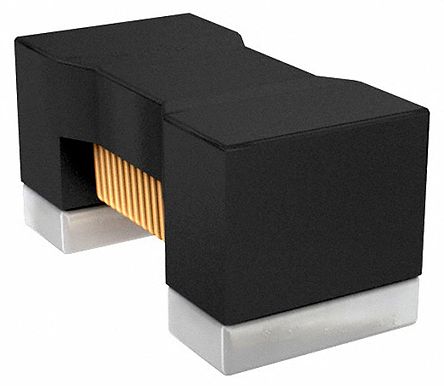

LQW18AN10NJ10D

Murata 0603 LQW18AN 系列线绕电感器高质量线圈电感器，设计用于 VHF 和 UHF 应用。 高谐振频率。 低容差电感值。 带有后缀 "10D" 的型号具有较低直流电阻值。 **应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。 ### SMT 0603 电感器（扼流圈）

Murata 0603 LQW18AN 系列线绕器

高质量线圈电感器，设计用于 VHF 和 UHF 应用。

高谐振频率。

低容差电感值。

带有后缀 "10D" 的型号具有较低直流电阻值。

**应用：**高频率电路，用于无线电信设备：例如蓝牙、GSM、W-LAN。

得捷:
FIXED IND 10NH 800MA 58 MOHM SMD

立创商城:
10nH ±5% 58mΩ

欧时:
Murata LQW18A 系列 10 nH 绕线贴片电感器 LQW18AN10NJ10D, ±5%容差, 800mA Idc Q:38, 58mΩ最大直流电阻

贸泽:
Fixed Inductors 0603 10nH +/-5% DCR 0.058

艾睿:
This rf chip LQW18AN10NJ10D surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with wirewound technology. It has a tolerance of 5%. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5G Hz. This product is 1.8 mm long, 1 mm tall and 1.1 mm deep. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 58m Ohm. It has an inductance of 10n H.

安富利:
Ind RF Chip Wirewound 10nH 5% 100MHz 38Q-Factor 800mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Unshielded Wirewound 10nH 5% 100MHz 38Q-Factor Ceramic 800mA 58mOhm DCR 0603 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.01uH 5% 100MHz 38Q-Factor Non Magnetic 0.8A 0.058Ohm DCR 0603 T/R
