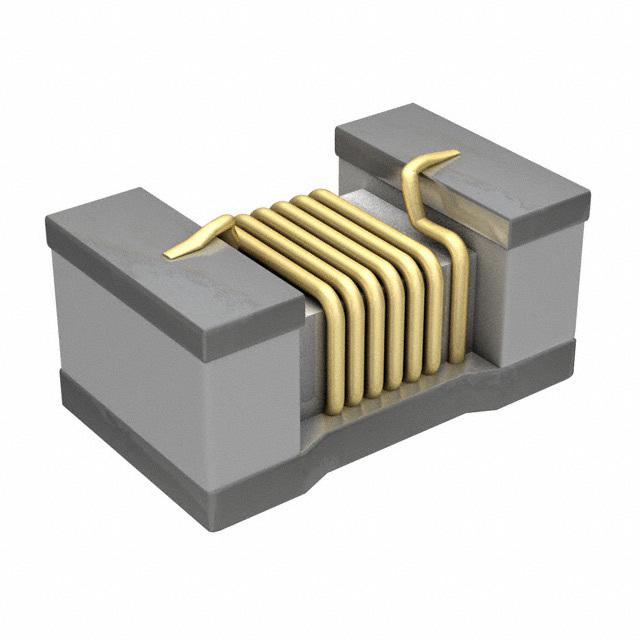

LQW15AN22NH00D

LQW15A 系列 0402 22 nH 3 % 310 mA SMD 线绕 贴片电感

固定器

立创商城:
22nH ±3% 300mΩ

得捷:
FIXED IND 22NH 310MA 300MOHM SMD

贸泽:
Fixed Inductors 22 NH 3%

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQW15AN22NH00D surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 22n H. This SMD inductor has a maximum DC current of 310m A with a maximum resistance of 300m Ohm. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. This device is made with wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 4G Hz. It has a tolerance of 3%.

安富利:
Ind RF Chip Wirewound 22nH 3% 100MHz 25Q-Factor 310mA 0402 Paper T/R

富昌:
LQW15A 系列 0402 22 nH 3 % 310 mA SMD 线绕 贴片电感

Chip1Stop:
Inductor RF Chip Wirewound 22nH 3% 100MHz 25Q-Factor 310mA 300mOhm DCR 0402 Paper T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.022uH 3% 100MHz 25Q-Factor Non Magnetic 0.31A 0.3Ohm DCR 0402 T/R

Win Source:
FIXED IND 22NH 310MA 300 MOHM
