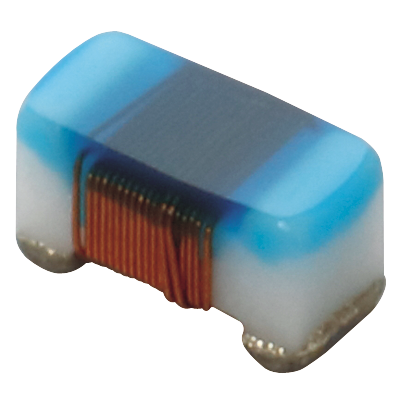

LQW15AN1N3D10D

片式电感器（片状线圈），高频卧式绕线 Chip Inductor Chip Coil for High Frequency Horizontal Wire Wound

1.3 nH 无屏蔽 绕线 器 1.2 A 17 毫欧最大 0402（1005 公制）

立创商城:
1.3nH ±0.5nH 1.2A 17mΩ

得捷:
FIXED IND 1.3NH 1.2A 17 MOHM SMD

贸泽:
Fixed Inductors 1.3nH 0.5nH 100MHz

艾睿:
Save valuable space on a PCB with this rf chip LQW15AN1N3D10D surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. This SMD inductor has a maximum DC current of 1.2 A with a maximum resistance of 17m Ohm. This device utilizes wirewound technology. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 16G Hz. It has an inductance of 1.3n H.

Chip1Stop:
Inductor RF Chip Wirewound 1.3nH 0.5nH 100MHz 20Q-Factor 1.2A 17mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0013uH 0.5nH 100MHz 20Q-Factor Non Magnetic 1.2A 0.017Ohm DCR 0402 T/R
