LQW2BASR11J00L

110nH ±5%

110nH Unshielded Wirewound Inductor 400mA 480mOhm Max 0805 2015 Metric

得捷:
FIXED IND 110NH 400MA 480MOHM SM

立创商城:
110nH ±5% 480mΩ

艾睿:

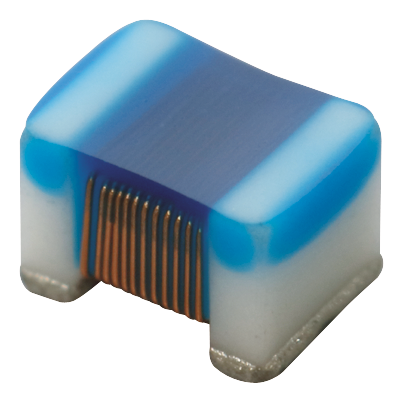

This rf chip LQW2BASR11J00L surface mount inductor from Murata is ideal for applications where space is a major influence of circuit design. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 110n H. Its test frequency is 150M Hz, while its minimum self-resonant frequency is 1.1G Hz. It has a tolerance of 5%. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep. This SMD inductor has a maximum DC current of 400m A with a maximum resistance of 480m Ohm. This device utilizes wirewound technology.

安富利:
Ind RF Chip Wirewound 110nH 5% 150MHz 50Q-Factor 400mA 0805 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 110nH 5% 150MHz 50Q-Factor 400mA 480mOhm DCR 0805 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.11uH 5% 150MHz 50Q-Factor Non Magnetic 0.4A 0.48Ohm DCR 0805 T/R
