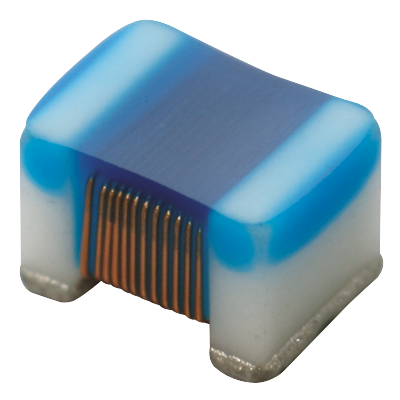

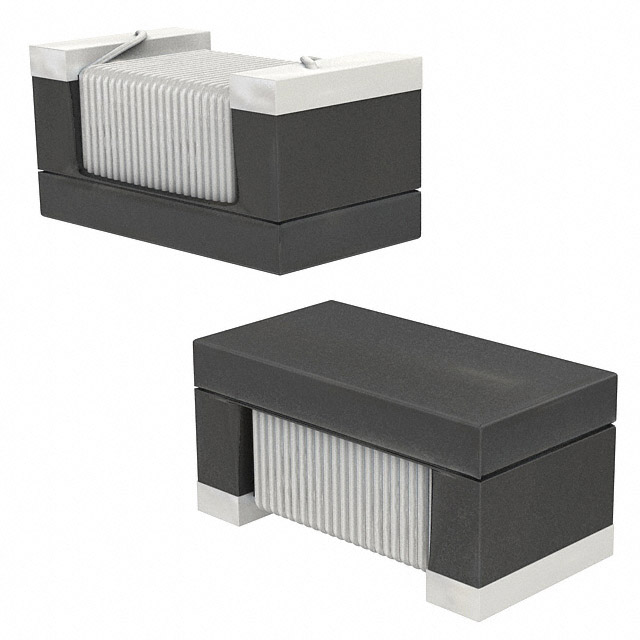

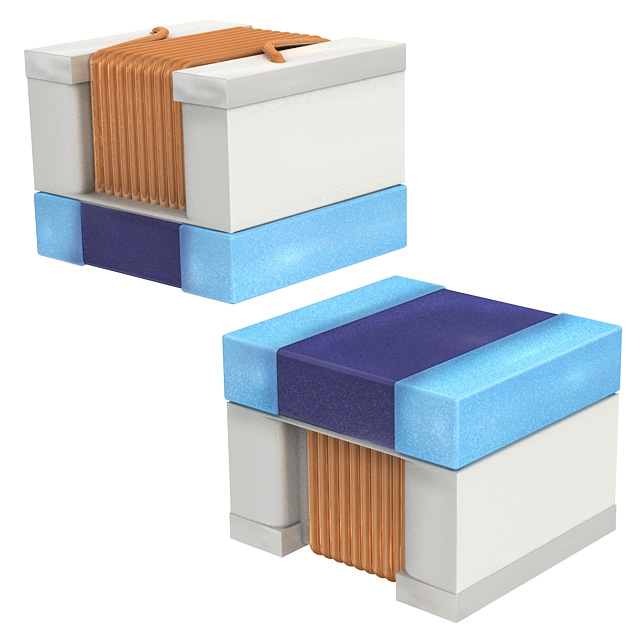

LQW2BAS24NJ00L

24nH ±5%

24nH Unshielded Wirewound Inductor 500mA 220mOhm Max 0805 2015 Metric

得捷:
FIXED IND 24NH 500MA 220MOHM SMD

立创商城:
24nH ±5% 220mΩ

艾睿:
Save valuable space on a PCB with this rf chip LQW2BAS24NJ00L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -55 °C to 125 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its test frequency is 250M Hz, while its minimum self-resonant frequency is 2.4G Hz. This device utilizes wirewound technology. It has a tolerance of 5%. It has an inductance of 24n H. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 220m Ohm. This product is 2.29 mm long, 1.52 mm tall and 1.73 mm deep.

安富利:
Ind RF Chip Wirewound 24nH 5% 250MHz 50Q-Factor 500mA 0805 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.024uH 5% 250MHz 50Q-Factor Non Magnetic 0.5A 0.22Ohm DCR 0805 T/R
