L1007C101KPWST

L1007C101KPWST图片1

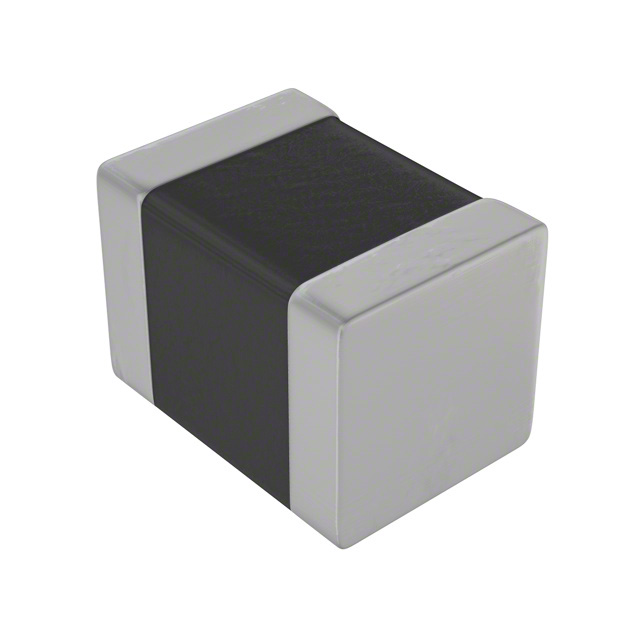

L1007C101KPWST图片2
L1007C101KPWST图片3
L1007C101KPWST图片4
L1007C101KPWST概述

1007 100uH ±10% 55mA

100 µH 无屏蔽 绕线 器 55 mA 2.1 欧姆 1007(2518 公制)


立创商城:
100uH ±10%


得捷:
FIXED IND 100UH 55MA 2.1 OHM SMD


艾睿:
This L1007C101KPWST surface mount inductor from Kemet is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles.


Chip1Stop:
SURFACE MOUNT FERRITE PRODUCTS INDUCTORS AND FERRITE BEADS


Verical:
Inductor RF Chip Wirewound 100uH 10% 796KHz 0.055A 2.1Ohm DCR 1007 T/R


L1007C101KPWST中文资料参数规格
技术参数

额定电流 55 mA

容差 ±10 %

电感 100 µH

自谐频率 9 MHz

电感公差 ±10 %

测试频率 0.796 MHz

电阻DC) 2.1 Ω

工作温度Max 105 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

封装 1007

外形尺寸

长度 2.5 mm

宽度 1.8 mm

高度 1.8 mm

封装 1007

物理参数

工作温度 -40℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买L1007C101KPWST
型号: L1007C101KPWST
描述:1007 100uH ±10% 55mA
