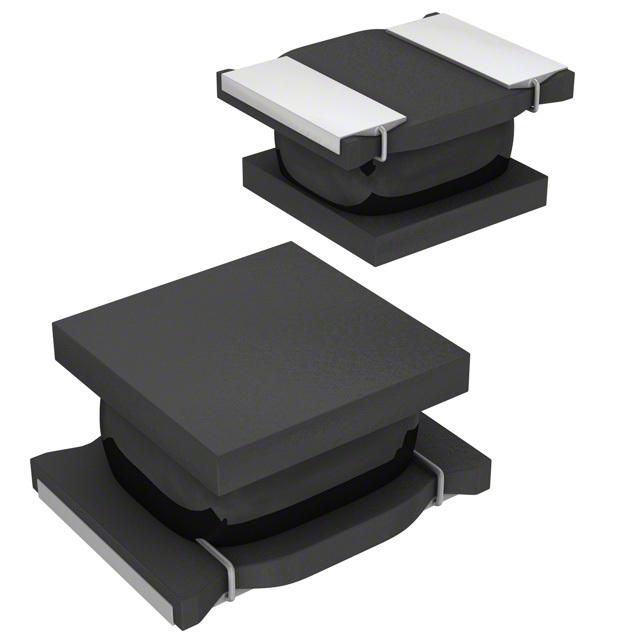

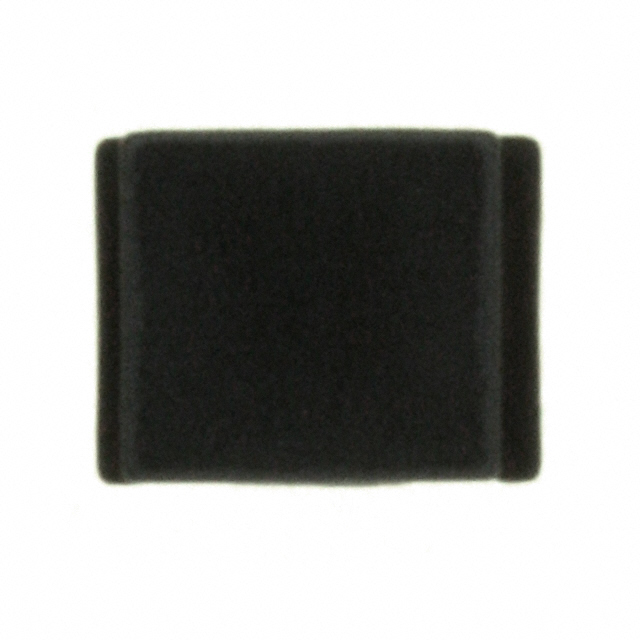

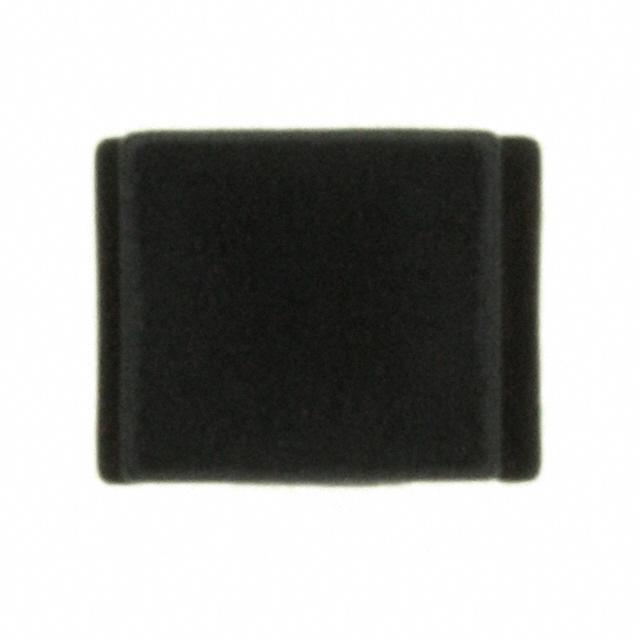

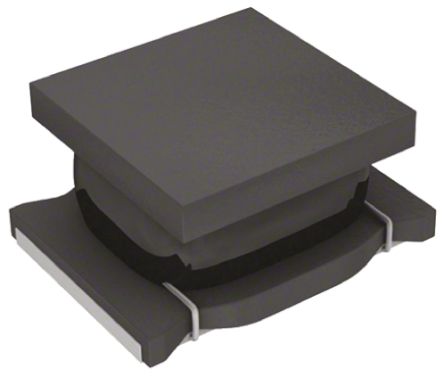

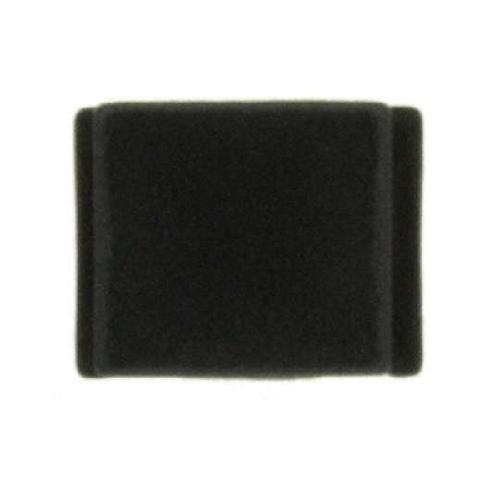

LQH32PN6R8NN0L

Murata 1210 LQH32P 系列磁性屏蔽线绕扼流圈LQH32P 系列微型贴片电感器，具有非常低直流电阻、高电流容量和高阻抗特性。 LQH32P 系列采用磁性屏蔽，适合用作电感器，用于在直流电源电路中实现扼流圈目的。 ### 表面安装 1210 电感器（扼流圈）

固定器

得捷:
FIXED IND 6.8UH 850MA 288MOHM SM

欧时:
Murata LQH32P 系列 屏蔽 铁氧体芯材 6.8 μH 绕线贴片电感器 LQH32PN6R8NN0L, ±30%容差, 850mA Idc

艾睿:
Make any circuit look clean and compact using this power chip LQH32PN6R8NN0L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 850m A with a maximum resistance of 288m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 40M Hz. This product is 3.5 mm long, 1.7 mm tall and 2.7 mm deep. This device utilizes wirewound technology. It has an inductance of 6.8u H.

安富利:
Ind Power Chip Shielded Wirewound 6.8uH 30% 1MHz Ferrite 850mA 1210 Embossed T/R

Chip1Stop:
Inductor Power Chip Shielded Wirewound 6.8uH 30% 1MHz Ferrite 850mA 288mOhm DCR 1210 T/R

Verical:
Inductor Power Chip Shielded Wirewound 6.8uH 30% 1MHz Ferrite 0.85A 0.288Ohm DCR 1210 T/R

Win Source:
FIXED IND 6.8UH 850MA 240 MOHM
