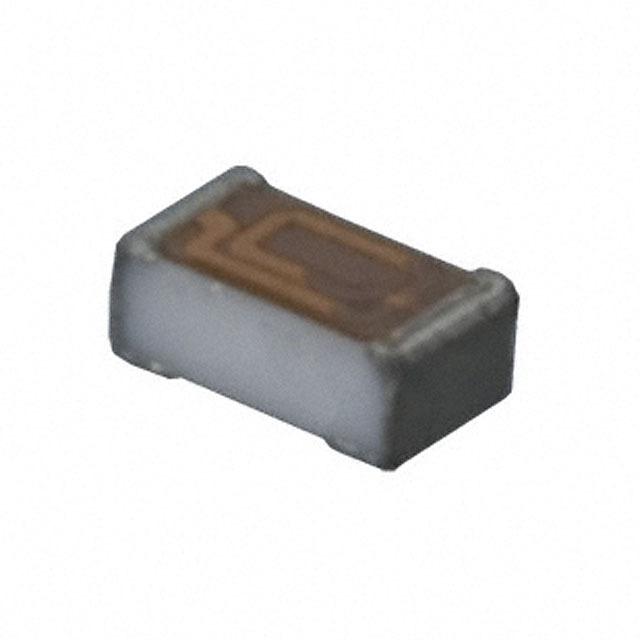

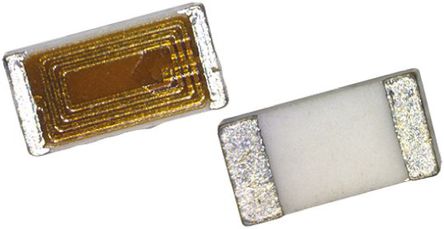

LQP18MN22NG02D

Murata 0603 LQP18M Series Thin Film InductorsLQP15M Ultra small low profile chip inductor with film technology construction. Available in various inductance values enabling assembly with no tuning required. High Q at high frequency range High self-resonant frequency due to low stray capacitance and narrow inductance distribution provides stable inductance in high frequency circuits such as telecommunications equipment ### Applications:-High frequency circuits of mobile phones such as PA, ANT, VCO, SAW, etc. Mobile phones "Bluetooth" W-LAN High frequency circuits in general ### SMT 0603 电感器（扼流圈）

Murata 0603 LQP18M Series Thin Film Inductors

LQP15M 超小型薄型片式器，带薄膜技术结构。 提供各种电感值，可实现无调谐装配。

高频率范围时的高 Q

由于低杂散电容和窄电感分布产生的高自谐振频率可在高频电路（例如电信器件）中提供稳定的电感

### Applications:-

移动电话的高频率电路，如 PA、ANT、VCO、SAW 等。

移动电话

蓝牙

W-LAN

一般高频电路

立创商城:
22nH ±2% 1.9Ω

欧时:
Murata LQP18M 系列 22 nH 绕线贴片电感器 LQP18MN22NG02D, ±2%容差, 100mA Idc Q:17, 1.9Ω最大直流电阻

得捷:
FIXED IND 22NH 100MA 1.9 OHM SMD

艾睿:
Save valuable space on a PCB with this rf chip LQP18MN22NG02D surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. Its test frequency is 500M Hz, while its minimum self-resonant frequency is 2.1G Hz. This device is made with thin film technology. It has a tolerance of 2%. This product is 1.75 mm long, 0.6 mm tall and 0.95 mm deep. It has an inductance of 22n H. This SMD inductor has a maximum DC current of 100m A with a maximum resistance of 1.9 Ohm.

安富利:
Ind RF Chip Thin Film 22nH 2% 500MHz 17Q-Factor 100mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Thin Film 22nH 2% 500MHz 17Q-Factor 100mA 1.9Ohm DCR 0603 T/R

儒卓力:
**LQP18MN 22nH 100mA 2% TFT **

Win Source:
22nH Unshielded Thick Film Inductor 100mA 1.9 Ohm Max 0603 1608 Metric
