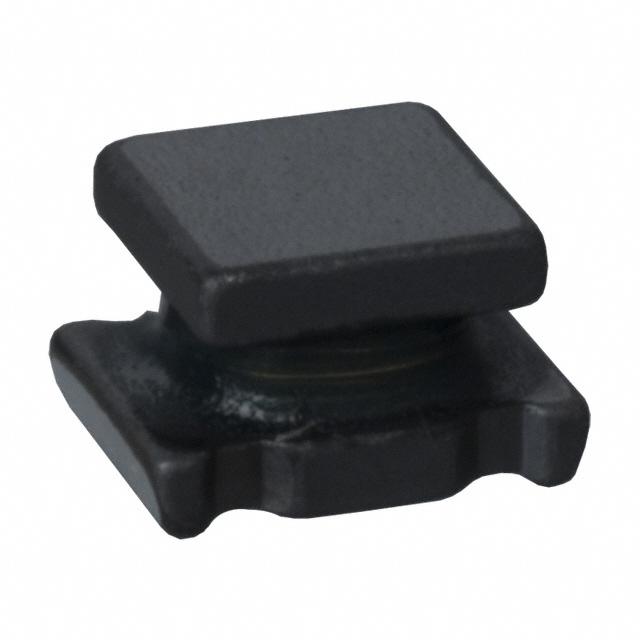

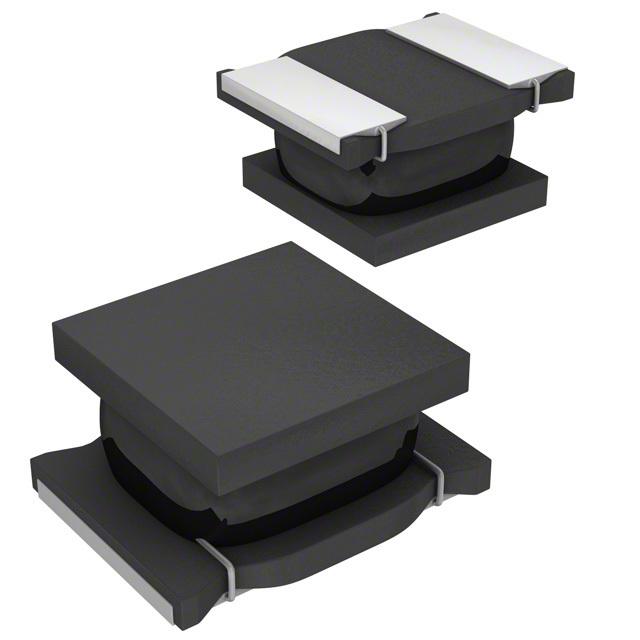

LQH32CN391K23L

片式电感器（片状线圈）功率电感（绕线型的扼流圈） Chip Inductor Chip Coil Power Inductor Wire Wound Type for Choke

390 µH 无屏蔽 绕线 器 60 mA 22.1 欧姆最大 非标准

得捷:
FIXED IND 390UH 60MA 22.1OHM SMD

立创商城:
390uH ±10% 17Ω

贸泽:
Fixed Inductors 390uH 10%

艾睿:

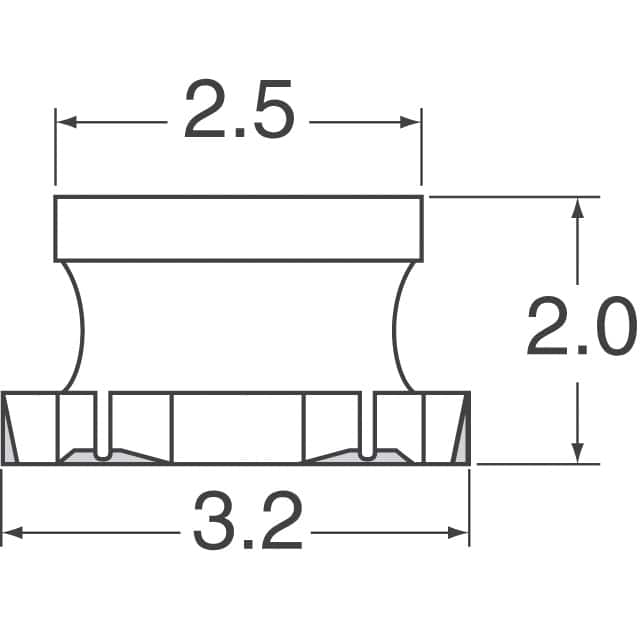

An ideal space-saving electronic component is this power chip LQH32CN391K23L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has an inductance of 390u H. This SMD inductor has a maximum DC current of 60m A with a maximum resistance of 22.1 Ohm. It has a tolerance of 10%. This device utilizes wirewound technology. This product is 3.5 mm long, 2.2 mm tall and 2.7 mm deep. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 5M Hz.

安富利:
Ind Power Chip Unshielded Wirewound 390uH 10% 1MHz Ferrite 60mA 1210 Embossed T/R

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 390uH 10% 1MHz Ferrite 60mA 22.1Ohm DCR 1210 T/R
