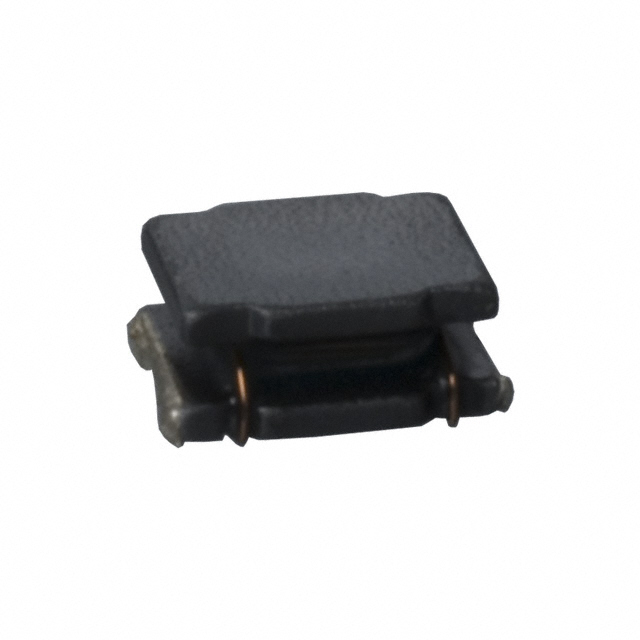

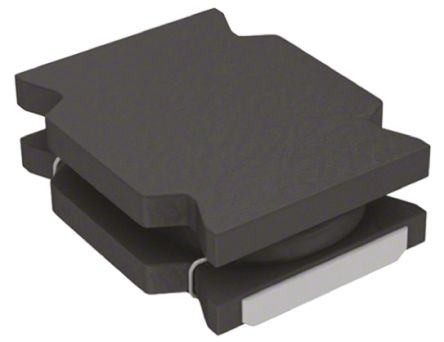

Murata 0806 LQH2MC_02 系列线绕扼流圈LQH2MC_02 系列薄型(最大 0.95mm)线绕芯片电感器 尺寸:2.0x1.6mm 0806 ### 表面安装 0806 电感器(扼流圈)
Murata 0806 LQH2MC_02 系列线绕扼流圈
LQH2MC_02 系列薄型(最大 0.95mm)线绕芯片器
尺寸:2.0x1.6mm 0806
得捷:
FIXED IND 82UH 90MA 9.75 OHM SMD
立创商城:
82uH ±10%
欧时:
### Murata 0806 LQH2MC_02 系列线绕扼流圈LQH2MC_02 系列薄型(最大 0.95mm)线绕芯片电感器 尺寸:2.0x1.6mm 0806 ### 表面安装 0806 电感器(扼流圈)
贸泽:
Fixed Inductors 82uH 10% 1MHz
艾睿:
This power chip LQH2MCN820K02L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 2.2 mm long, 0.95 mm tall and 1.8 mm deep. It has a tolerance of 10%. It has an inductance of 82u H. This SMD inductor has a maximum DC current of 90m A with a maximum resistance of 9.75 Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 14M Hz. This device utilizes wirewound technology.
安富利:
Ind Power Chip Unshielded Wirewound 82uH 10% 1MHz Ferrite 90mA 0806 Embossed T/R
Chip1Stop:
Inductor Power Chip Unshielded Wirewound 82uH 10% 1MHz Ferrite 90mA 9.75Ohm DCR 0806 Embossed T/R
Verical:
Inductor Power Chip Unshielded Wirewound 82uH 10% 1MHz Ferrite 0.09A 9.75Ohm DCR 0806 T/R
Win Source:
82μH Unshielded Wirewound Inductor 90mA 9.75 Ohm Max 0806 2016 Metric
额定电流 90 mA
容差 ±10 %
电感 82 µH
自谐频率 14 MHz
产品系列 LQH
电阻 7.50 Ω
电感公差 ±10 %
测试频率 1 MHz
电阻DC) ≤9.75 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 9.75 Ω
安装方式 Surface Mount
引脚数 2
封装 0806
长度 2 mm
宽度 1.6 mm
高度 0.9 mm
封装 0806
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
