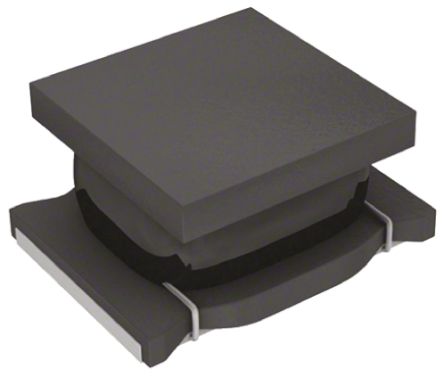

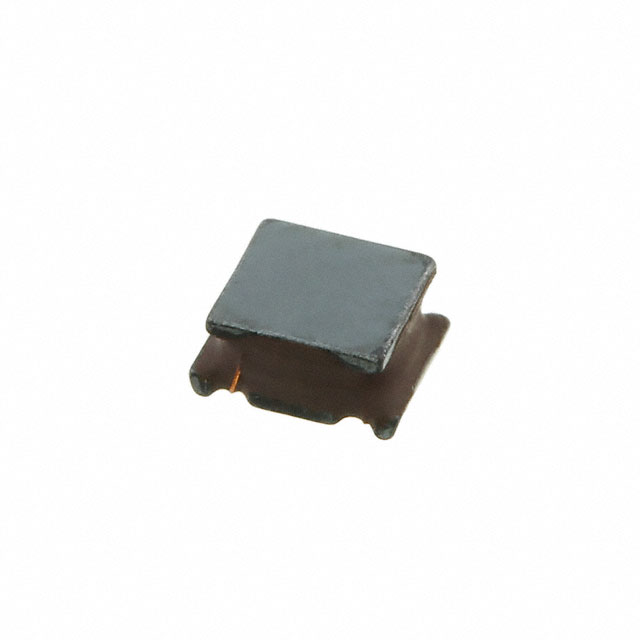

LQH32PN101MN0L

Murata 1210 LQH32P 系列磁性屏蔽线绕扼流圈LQH32P 系列微型贴片电感器，具有非常低直流电阻、高电流容量和高阻抗特性。 LQH32P 系列采用磁性屏蔽，适合用作电感器，用于在直流电源电路中实现扼流圈目的。 ### 表面安装 1210 电感器（扼流圈）

Murata 1210 LQH32P 系列磁性屏蔽线绕扼流圈

LQH32P 系列微型贴片器，具有非常低直流电阻、高电流容量和高阻抗特性。 LQH32P 系列采用磁性屏蔽，适合用作电感器，用于在直流电源电路中实现扼流圈目的。

得捷:
FIXED IND 100UH 250MA 3.24OHM SM

欧时:
Murata LQH32P 系列 屏蔽 铁氧体芯材 100 μH 绕线贴片电感器 LQH32PN101MN0L, ±20%容差, 250mA Idc

立创商城:
100uH ±20% 180mA 3.24Ω

艾睿:
Save valuable space on a PCB with this power chip LQH32PN101MN0L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 3.24 Ohm. This product is 3.5 mm long, 1.7 mm tall and 2.8 mm deep. It has an inductance of 100u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 8M Hz. This device is made with wirewound technology. It has a tolerance of 20%.

安富利:
Ind Power Chip Shielded Wirewound 100uH 20% 1MHz Ferrite 250mA 1210 Embossed T/R

Chip1Stop:
Inductor Power Chip Shielded Wirewound 100uH 20% 1MHz Ferrite 250mA 3.24Ohm DCR 1210 T/R

Verical:
Inductor Power Chip Shielded Wirewound 100uH 20% 1MHz Ferrite 0.25A 3.24Ohm DCR 1210 T/R

Win Source:
100μH Shielded Wirewound Inductor 250mA 3.24 Ohm Max 1210 3225 Metric
