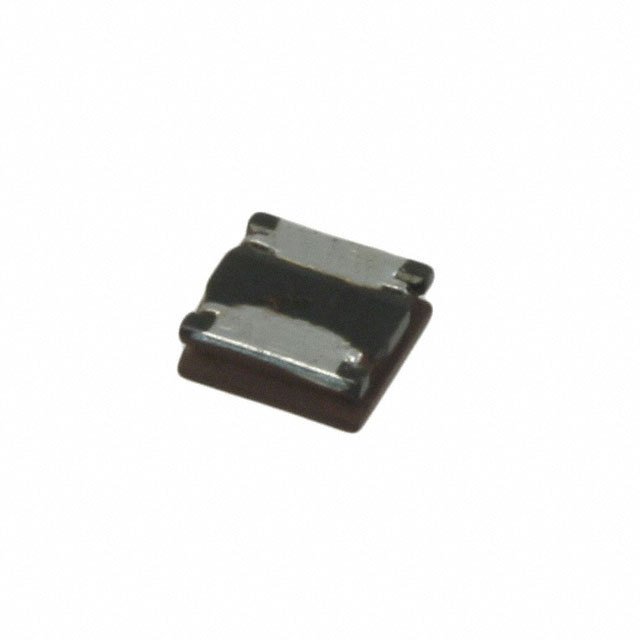

LQH3NPN4R7MMRE

固定电感器

屏蔽 绕线 器 126 毫欧最大 1212（3030 公制）

得捷:
FIXED IND 4.7UH 1.4A 126MOHM SMD

立创商城:
4.7uH ±20% 126mΩ

贸泽:
固定电感器

艾睿:
An ideal space-saving electronic component is this power chip LQH3NPN4R7MMRE surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 125 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 57M Hz. This device utilizes wirewound technology. This product is 3.2 mm long, 1.5 mm tall and 3.2 mm deep. It has an inductance of 4.7u H. This SMD inductor has a maximum DC current of 1.4 A with a maximum resistance of 126m Ohm. It has a tolerance of 20%.

安富利:
Ind Power Chip Shielded Wirewound 4.7uH 20% 1MHz Ferrite 1.4A 1212 Embossed T/R

富昌:
LQH3N Series 1212 4.7 uH ±20 % 1.4 A 126 mOhm SMT Shielded Wirewound Inductor

Verical:
Inductor Power Chip Shielded Wirewound 4.7uH 20% 1MHz Ferrite 1.4A 0.126Ohm DCR 1212 T/R
