LQH43CN3R3M03L

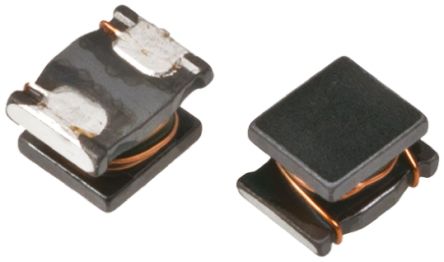

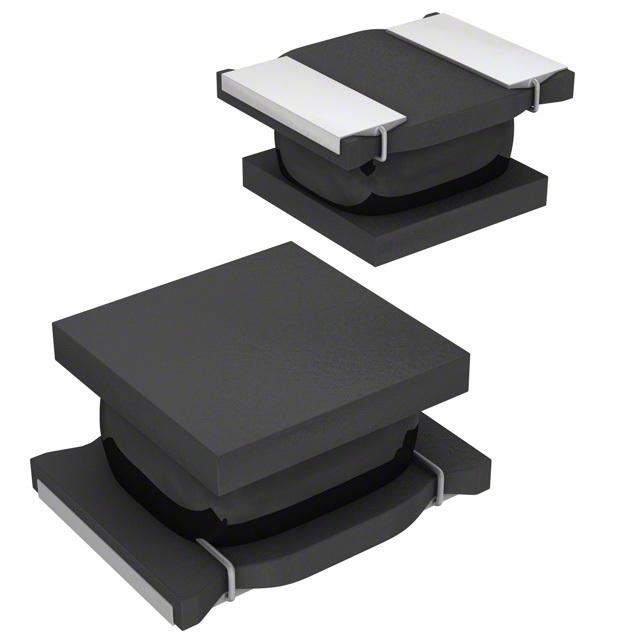

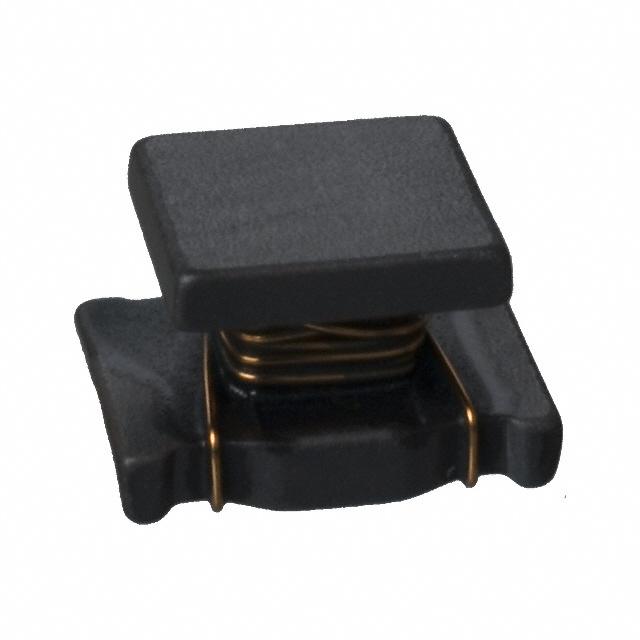

Murata 1812 LQH43CN 系列线绕电感器线圈电感器，带铁氧体磁芯。 高质量和低直流电阻。 低电压降和高温度稳定性。 应用：过滤电感器，适用于开关模式电源。 ### 表面安装 1812 电感器（扼流圈）

Murata 1812 LQH43CN 系列线绕器

线圈电感器，带铁氧体磁芯。

高质量和低直流电阻。

低电压降和高温度稳定性。

应用：过滤电感器，适用于开关模式电源。

得捷:
FIXED IND 3.3UH 800MA 130MOHM SM

立创商城:
3.3uH ±20% 130mΩ

欧时:
Murata LQH43CN 系列 3.3 μH 绕线贴片电感器 LQH43CN3R3M03L, ±20%容差, 800mA Idc, 130mΩ最大直流电阻

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power chip LQH43CN3R3M03L surface mount inductor from Murata to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 47M Hz. This device utilizes wirewound technology. This product is 4.8 mm long, 2.8 mm tall and 3.4 mm deep. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 800m A with a maximum resistance of 130m Ohm. It has an inductance of 3.3u H.

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 3.3uH 20% 1MHz Ferrite 800mA 130mOhm DCR 1812 T/R

Verical:
Inductor Power Chip Unshielded Wirewound 3.3uH 20% 1MHz Ferrite 0.8A 0.13Ohm DCR 1812 T/R

儒卓力:
**LQH43CN 3,3uH 800mA 20% WWT **
