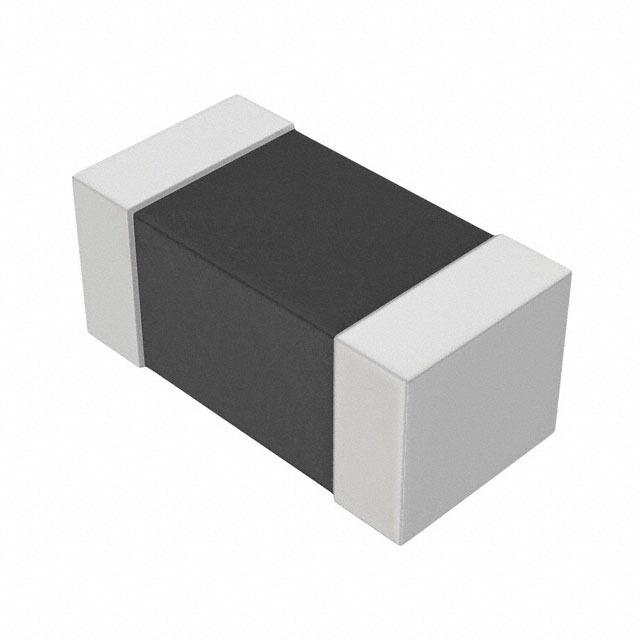

0603 220nH ±30%
屏蔽 多层 器 138 毫欧最大 0603(1608 公制)
得捷:
FIXED IND 220NH 1.25A 138MOHM SM
贸泽:
Fixed Inductors 0603 0.22uH 30%
艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this power chip LQM18PNR22NFRL surface mount inductor from Murata to save valuable space. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This SMD inductor has a maximum DC current of 1.25 A with a maximum resistance of 138m Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 100M Hz. This device utilizes multi-layer technology. It has an inductance of 220n H. This product is 1.75 mm long, 0.95 mm tall and 0.95 mm deep.
安富利:
Ind Power Chip Shielded Multi-Layer 220nH 30% 1MHz Ferrite 1.25A 0603 Embossed T/R
Chip1Stop:
Inductor Power Chip Shielded Multi-Layer 220nH 30% 1MHz Ferrite 1.25A 138mOhm DCR 0603 Embossed T/R
额定电流 1.25 A
容差 ±30 %
电感 220 nH
自谐频率 100 MHz
产品系列 LQM
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤138 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.138 Ω
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.95 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 无铅
