Murata 1210 LQH32P 系列磁性屏蔽线绕扼流圈LQH32P 系列微型贴片电感器,具有非常低直流电阻、高电流容量和高阻抗特性。 LQH32P 系列采用磁性屏蔽,适合用作电感器,用于在直流电源电路中实现扼流圈目的。 ### 表面安装 1210 电感器(扼流圈)
固定器
得捷:
FIXED IND 1.5UH 1.75A 68.4 MOHM
立创商城:
1.5uH ±30% 1.75A 68.4mΩ
欧时:
Murata LQH32P 系列 屏蔽 铁氧体芯材 1.5 μH 绕线贴片电感器 LQH32PN1R5NN0L, ±30%容差, 1.75A Idc
艾睿:
Use this power chip LQH32PN1R5NN0L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has an inductance of 1.5u H. This product is 3.5 mm long, 1.7 mm tall and 2.7 mm deep. This device is made with wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 70M Hz. This SMD inductor has a maximum DC current of 1.75 A with a maximum resistance of 68.4m Ohm.
安富利:
Ind Power Chip Shielded Wirewound 1.5uH 30% 1MHz Ferrite 1.75A 1210 Embossed T/R
Chip1Stop:
Inductor Power Chip Shielded Wirewound 1.5uH 30% 1MHz Ferrite 1.75A 68.4mOhm DCR 1210 T/R
Verical:
Inductor Power Chip Shielded Wirewound 1.5uH 30% 1MHz Ferrite 1.75A 0.0684Ohm DCR 1210 T/R
儒卓力:
**LQH32PN 1,5uH 1750mA 30% WWT **
Win Source:
1.5μH Shielded Wirewound Inductor 1.75A 68.4 mOhm Max 1210 3225 Metric
额定电流 1.75 A
容差 ±30 %
电感 1.5 µH
自谐频率 70 MHz
产品系列 LQH
电感公差 ±30 %
测试频率 1 MHz
电阻DC) ≤68.4 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 68.4 mΩ
安装方式 Surface Mount
封装公制 3225
封装 1210

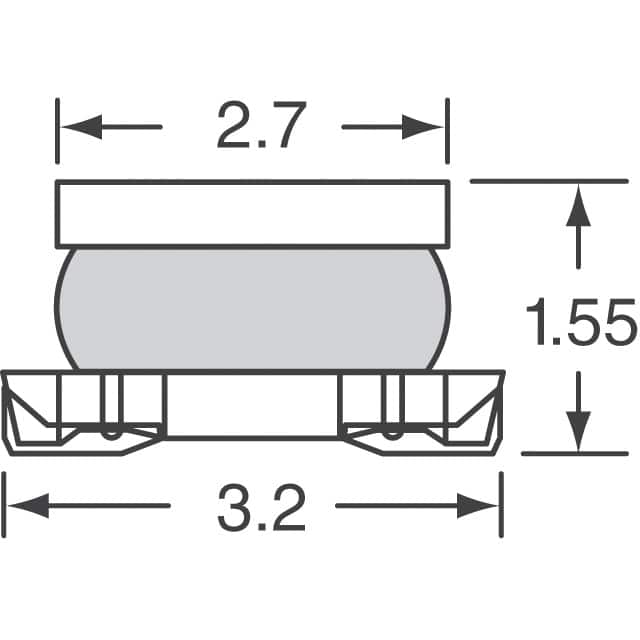

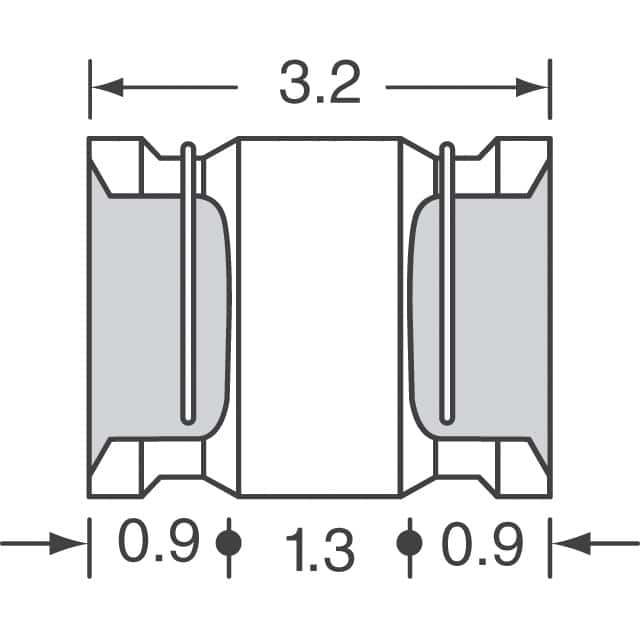

长度 3.2 mm
宽度 2.5 mm
高度 1.55 mm
封装公制 3225
封装 1210
重量 0.077 g
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
