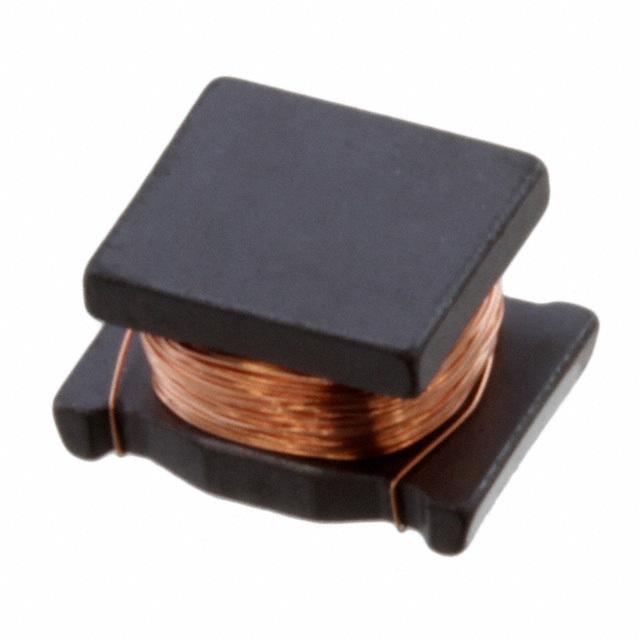

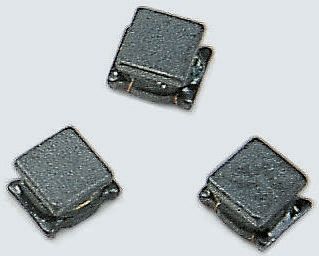

Murata 1812 LQH43MN 系列线绕电感器线圈贴片式电感器绕在铁氧体磁芯上。 高频率时的质量高。 低直流电阻。 高电流和电感。 ### 表面安装 1812 电感器(扼流圈)
Murata 1812 LQH43MN 系列线绕器
线圈贴片式电感器绕在铁氧体磁芯上。
高频率时的质量高。
低直流电阻。
高电流和电感。
得捷:
FIXED IND 2.2MH 30MA 50 OHM SMD
欧时:
Murata LQH43MN 系列 铁氧体芯材 2.2 mH 绕线贴片电感器 LQH43NN222J03L, ±5%容差, 30mA Idc Q:40
立创商城:
2.2mH ±5% 30mA 50Ω
贸泽:
Fixed Inductors 2200uH 5%
艾睿:
Make any circuit look clean and compact using this power chip LQH43NN222J03L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 4.8 mm long, 2.8 mm tall and 3.4 mm deep. It has an inductance of 2.2m H. This SMD inductor has a maximum DC current of 30m A with a maximum resistance of 50 Ohm. It has a tolerance of 5%. Its test frequency is 1K Hz, while its minimum self-resonant frequency is 1.3M Hz. This device is made with wirewound technology.
安富利:
Ind General Purpose Chip Unshielded Wirewound 2.2mH 5% 1KHz 40Q-Factor Ferrite 30mA 1812 Embossed T/R
Verical:
Inductor Power Chip Unshielded Wirewound 2200uH 5% 1KHz 40Q-Factor Ferrite 0.03A 50Ohm DCR 1812 T/R
儒卓力:
**LQH43NN 2200uH 30mA 5% WWT **
Win Source:
FIXED IND 2.2MH 30MA 50 OHM SMD / 2.2 mH Unshielded Drum Core, Wirewound Inductor 30 mA 50Ohm Max 1812 4532 Metric
额定电流 30 mA
容差 ±5 %
电感 2200 µH
自谐频率 1.3 MHz
产品系列 LQH
电感公差 ±5 %
测试频率 1 kHz
电阻DC) ≤50 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 50 Ω
安装方式 Surface Mount
封装公制 4532
封装 1812
长度 4.5 mm
宽度 3.2 mm
高度 2.6 mm
封装公制 4532
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
