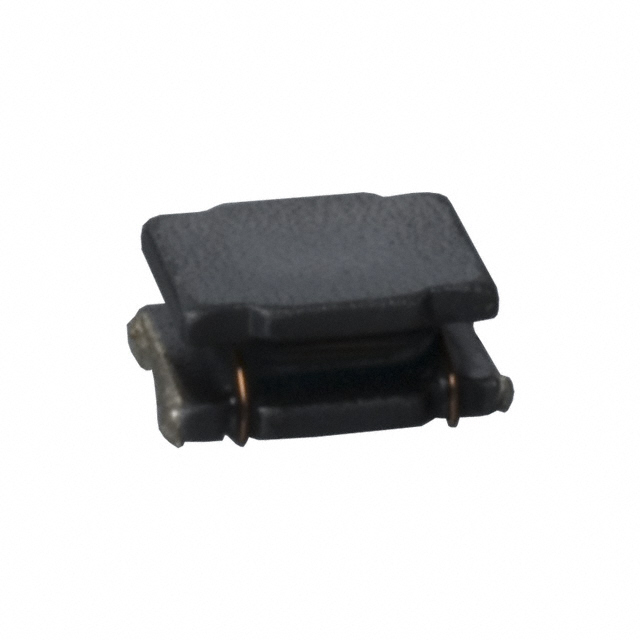

LQH2MCN470K02L

固定电感器

固定器

得捷:
FIXED IND 47UH 120MA 6.63OHM SMD

立创商城:
47uH ±10% 5.1Ω

贸泽:
Fixed Inductors Choke Circuit Coated 47uH

艾睿:
This power chip LQH2MCN470K02L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has an inductance of 47u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 18M Hz. It has a tolerance of 10%. This device utilizes wirewound technology. This SMD inductor has a maximum DC current of 120m A with a maximum resistance of 6.63 Ohm. This product is 2.2 mm long, 0.95 mm tall and 1.8 mm deep.

安富利:
Ind Power Chip Unshielded Wirewound 47uH 10% 1MHz Ferrite 120mA 0806 Embossed T/R

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 47uH 10% 1MHz Ferrite 120mA 6.63Ohm DCR 0806 T/R

Verical:
Inductor Power Chip Unshielded Wirewound 47uH 10% 1MHz Ferrite 0.12A 6.63Ohm DCR 0806 T/R

Win Source:
FIXED IND 47UH 120MA 5.1 OHM SMD
