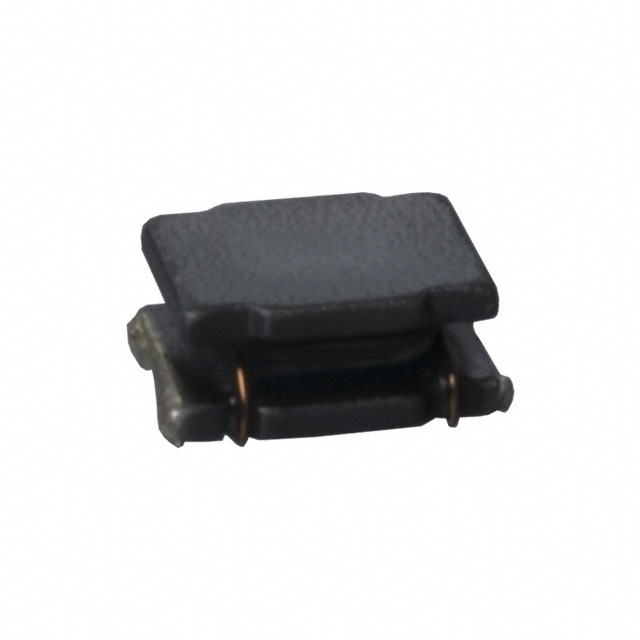

LQH2MCN8R2M02L

Murata 0806 LQH2MC_02 系列线绕扼流圈LQH2MC_02 系列薄型（最大 0.95mm）线绕芯片电感器 尺寸：2.0x1.6mm 0806 ### 表面安装 0806 电感器（扼流圈）

Murata 0806 LQH2MC_02 系列线绕扼流圈

LQH2MC_02 系列薄型（最大 0.95mm）线绕芯片器

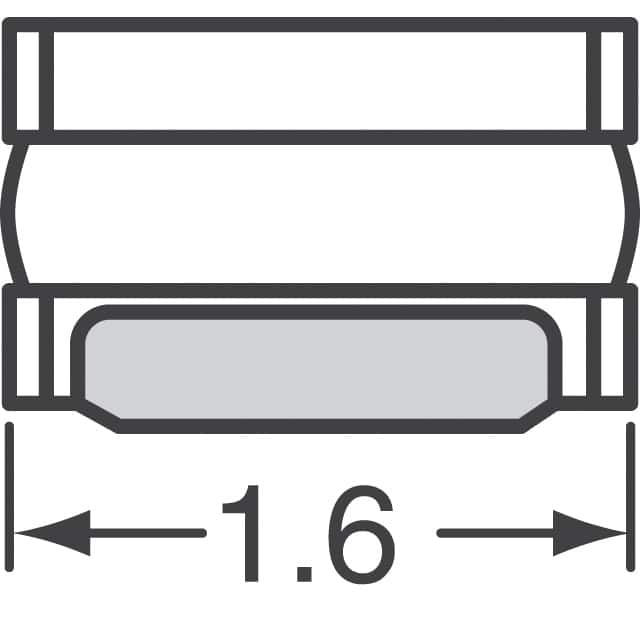

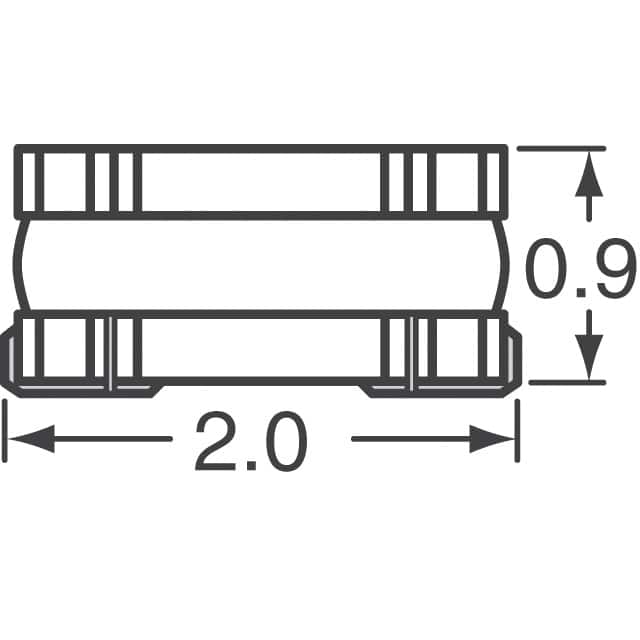

尺寸：2.0x1.6mm 0806

### 表面安装 0806 电感器（扼流圈）

立创商城:
8.2uH ±20% 1.1Ω

得捷:
FIXED IND 8.2UH 235MA 1.43OHM SM

欧时:
### Murata 0806 LQH2MC_02 系列线绕扼流圈LQH2MC_02 系列薄型（最大 0.95mm）线绕芯片电感器 尺寸：2.0x1.6mm 0806 ### 表面安装 0806 电感器（扼流圈）

贸泽:
Fixed Inductors 8.2uH 20% 1MHz

艾睿:
This power chip LQH2MCN8R2M02L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device is made with wirewound technology. This product is 2.2 mm long, 0.95 mm tall and 1.8 mm deep. It has a tolerance of 20%. This SMD inductor has a maximum DC current of 235m A with a maximum resistance of 1.43 Ohm. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 50M Hz. It has an inductance of 8.2u H.

安富利:
Ind Power Chip Unshielded Wirewound 8.2uH 20% 1MHz Ferrite 235mA 0806 Embossed T/R

Chip1Stop:
Inductor Power Chip Unshielded Wirewound 8.2uH 20% 1MHz Ferrite 235mA 1.43Ohm DCR 0806 T/R

Verical:
Inductor Power Chip Unshielded Wirewound 8.2uH 20% 1MHz Ferrite 0.235A 1.43Ohm DCR 0806 T/R

Win Source:
8.2μH Unshielded Wirewound Inductor 235mA 1.43 Ohm Max 0806 2016 Metric
