LQW2BHNR15J03L

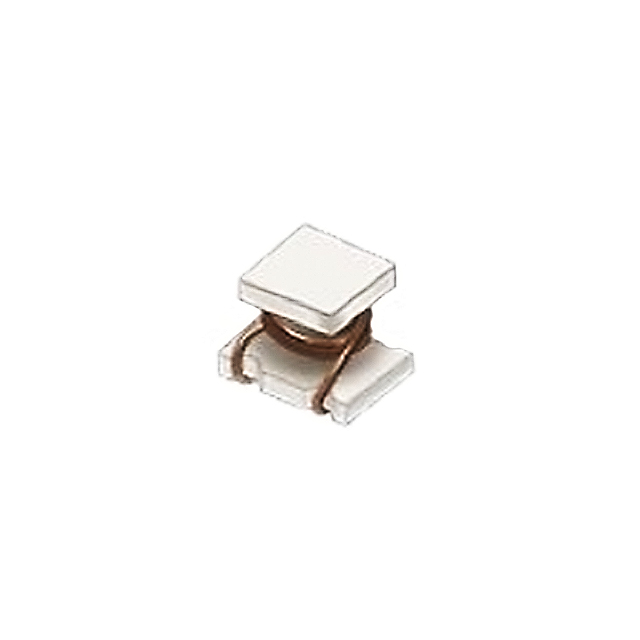

Murata 0805 LQW2BH 系列线绕电感器工作温度：-40 → +85°C 尺寸：2.0 x 1.5 x 1.75 mm 封装类型：0805 ### 表面安装 0805 电感器（扼流圈）

值Inductance| 150nH/0.15UH \---|--- 误差Tolerance| ±5% 额定电流Current Rating| 390mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 30 @ 150MHz 自振谐频率SRFFrequency - Self Resonant| 350MHz DC电阻DCRDC Resistance DCR| 0.47Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| High Frequency Wound Type LQW2BH Series LQW2BH series consists of air-core chip coil using a sub-miniature alumina core as a bobbin. The series has excellent solder heat resistance. Both flow and reflow soldering methods can be employed. Features 1. Inductance: 3.3 to 470nH Wide inductance ranges 2. High self-resonant frequency characteristics 3. High Q value and highly stable inductance in high frequency 4. Low DC resistance and large rated current 描述与应用| 高频绕线的类型LQW2BH系列 LQW2BH系列使用超小型氧化铝芯作为骨架。该系列产品具有优异的耐焊热性。可以采用流量和回流焊接方法。 特点 1。电感：3.3〜470nH容（宽电感范围） 2。高自谐振频率特性 3。在高频下具有高Q值和高度稳定的电感 4。低直流电阻和大额定电流
