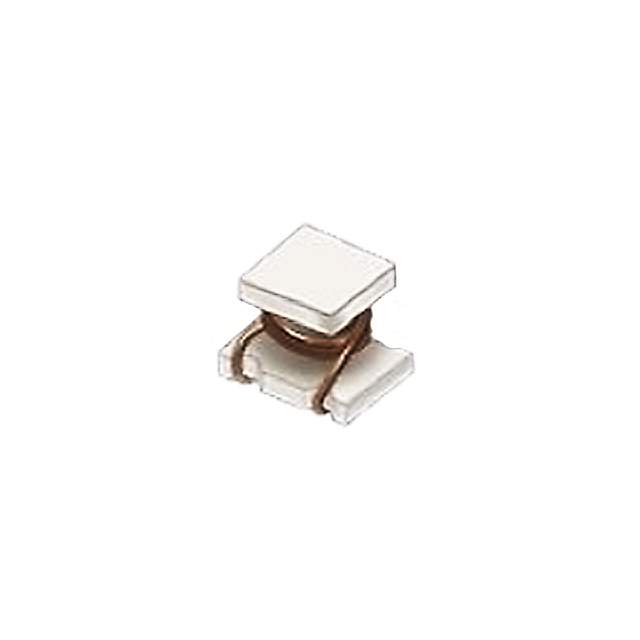

Murata 0805 LQW2BH_13 系列线绕电感器工作温度:-40 → +85°C 尺寸:2.0 x 1.5 x 1.75 mm 封装类型:0805 ### 表面安装 0805 电感器(扼流圈)
Murata 0805 LQW2BH_13 系列线绕器
工作温度:-40 → +85°C
尺寸:2.0 x 1.5 x 1.75 mm
封装类型:0805
得捷:
FIXED IND 6.8NH 1.4A 20 MOHM SMD
立创商城:
6.8nH ±0.5nH 20mΩ
欧时:
Murata LQW2BH_13 系列 铁氧体芯材 6.8 nH 绕线贴片电感器 LQW2BHN6N8D13L, ±0.5nH容差, 1.4A Idc Q:35
贸泽:
Fixed Inductors 0805 6.8nH +/-0.5nH Chip Inductor
艾睿:
This rf chip LQW2BHN6N8D13L surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has a minimum operating temperature of -25 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 5.4G Hz. This product is 2.2 mm long, 1.78 mm tall and 1.7 mm deep. It has an inductance of 6.8n H. This SMD inductor has a maximum DC current of 1.4 A with a maximum resistance of 20m Ohm. This device is made with wirewound technology.
安富利:
Ind RF Chip Wirewound 6.8nH 0.5nH 100MHz 35Q-Factor 1.4A 0805 Embossed T/R
Chip1Stop:
Inductor RF Chip Wirewound 6.8nH 0.5nH 100MHz 35Q-Factor 1.4A 20mOhm DCR 0805 Embossed T/R
Win Source:
FIXED IND 6.8NH 1.4A 20 MOHM SMD
额定电流 1.4 A
电感 6.8 nH
自谐频率 5.4 GHz
产品系列 LQW
电感公差 ±0.5 nH
测试频率 100 MHz
电阻DC) ≤20 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 20 mΩ
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.5 mm
高度 1.7 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
