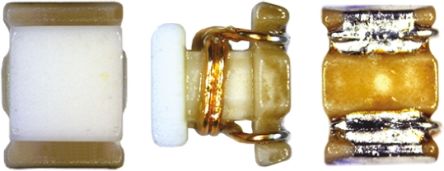

LQW2BHN18NK13L

Murata 0805 LQW2BH_13 系列线绕电感器工作温度：-40 → +85°C 尺寸：2.0 x 1.5 x 1.75 mm 封装类型：0805 ### 表面安装 0805 电感器（扼流圈）

Murata 0805 LQW2BH_13 系列线绕器

工作温度：-40 → +85°C

尺寸：2.0 x 1.5 x 1.75 mm

封装类型：0805

得捷:
FIXED IND 18.8NH 1A 50 MOHM SMD

立创商城:
18.8nH ±10% 50mΩ

欧时:
Murata LQW2BH_13 系列 铁氧体芯材 18.8 nH 绕线贴片电感器 LQW2BHN18NK13L, ±10%容差, 1A Idc Q:40

艾睿:
This rf chip LQW2BHN18NK13L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -25 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with wirewound technology. This product is 2.2 mm long, 1.78 mm tall and 1.7 mm deep. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.6G Hz. This SMD inductor has a maximum DC current of 1 A with a maximum resistance of 100m Ohm. It has a tolerance of 10%. It has an inductance of 18.8n H.

安富利:
Ind RF Chip Wirewound 18.8nH 10% 100MHz 40Q-Factor 1A 0805 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 18.8nH 10% 100MHz 40Q-Factor 1A 100mOhm DCR 0805 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0188uH 10% 100MHz 40Q-Factor Non Magnetic 1A 0.05Ohm DCR 0805 T/R
