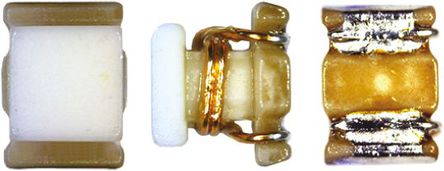

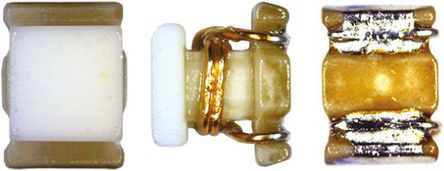

LQW2BHN47NG03L

Murata 0805 LQW2BH 系列线绕电感器工作温度：-40 → +85°C 尺寸：2.0 x 1.5 x 1.75 mm 封装类型：0805 ### 表面安装 0805 电感器（扼流圈）

Murata 0805 LQW2BH 系列线绕器

工作温度：-40 → +85°C

尺寸：2.0 x 1.5 x 1.75 mm

封装类型：0805

得捷:
FIXED IND 47NH 450MA 230MOHM SMD

欧时:
Murata LQW2BH 系列 铁氧体芯材 47 nH 绕线贴片电感器 LQW2BHN47NG03L, ±2%容差, 450mA Idc Q:40

艾睿:
This rf chip LQW2BHN47NG03L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. It has a tolerance of 2%. This SMD inductor has a maximum DC current of 450m A with a maximum resistance of 230m Ohm. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 1.6G Hz. It has an inductance of 47n H. This product is 2.2 mm long, 1.78 mm tall and 1.7 mm deep. This device is made with wirewound technology.

安富利:
Ind RF Chip Wirewound 47nH 2% 100MHz 40Q-Factor Air 450mA 0805 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 47nH 2% 100MHz 40Q-Factor Air 450mA 230mOhm DCR 0805 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.047uH 2% 100MHz 40Q-Factor Non Magnetic 0.45A 0.23Ohm DCR 0805 T/R
