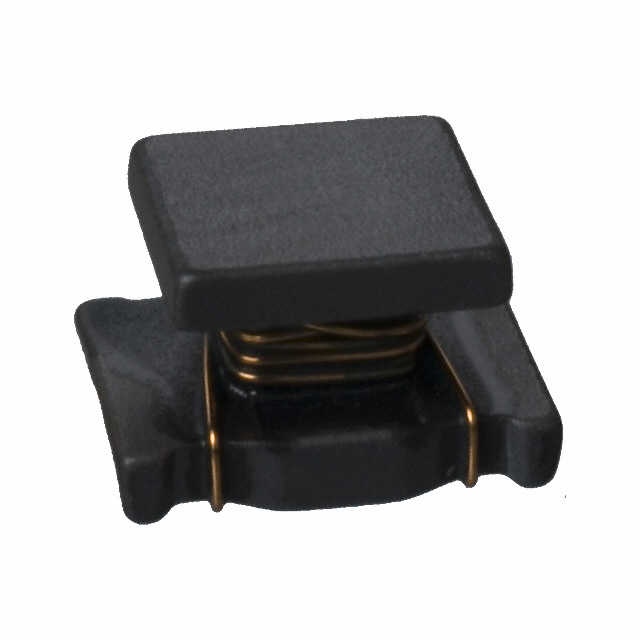

片式电感器(片状线圈)一般用绕线型LQH43M / LQH43N系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH43M/LQH43N Series
值Inductance | 150UH \---|--- 误差Tolerance | ±5% 额定电流Current Rating | 130mA 饱和电流Current - Saturation | 不同频率时的Q值Q @ Frequency | 40@ 796KHZ 自振谐频率SRFFrequency - Self Resonant | 5.5MHz DC电阻DCRDC Resistance DCR | 3.7Ω/Ohm 屏蔽Shielding | 无屏蔽 Unshielded Description & Applications | LQH43M/N Series LQH43M/N series consists of wound type chip coils for general use by Murata"s original auto winding technology and ferrite core. Features 1. High Q value at high frequency and low DC resistance 2. Wide inductance range from 1.0 to 2200 micro H 3. Large current and large inductance 描述与应用 | LQH43M/ N系列 LQH43M/ N系列是采用制作所的原自动绕线技术和铁氧体磁芯线圈绕线型芯片。 特点 1。在高频高Q值和低直流电阻 2。宽泛的电感值范围从1.0到2200微ħ 3。大电流和大电感
额定电流 130 mA
容差 ±5 %
电感 150 µH
自谐频率 5.5 MHz
产品系列 LQH
电感公差 ±5 %
测试频率 1 MHz
电阻DC) ≤3.7 Ω
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 3.7 Ω
安装方式 Surface Mount
封装公制 4532
封装 1812

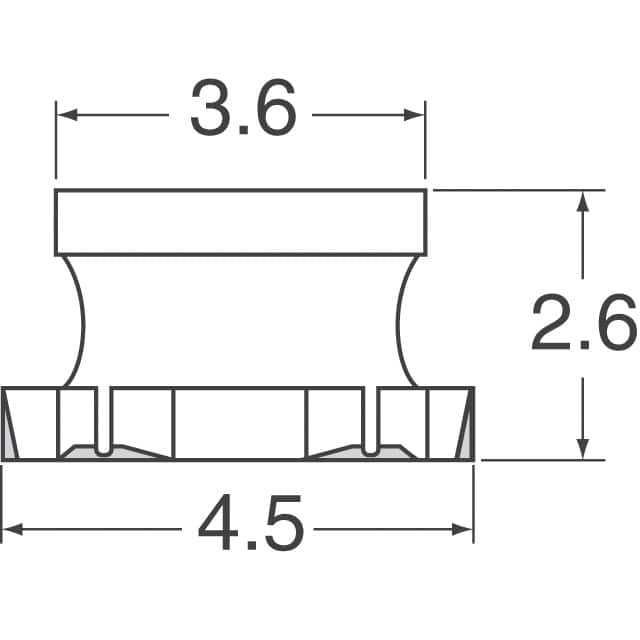

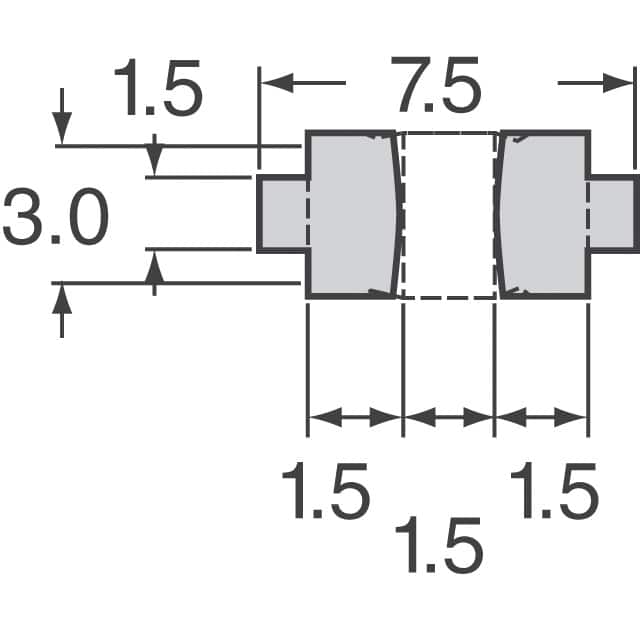

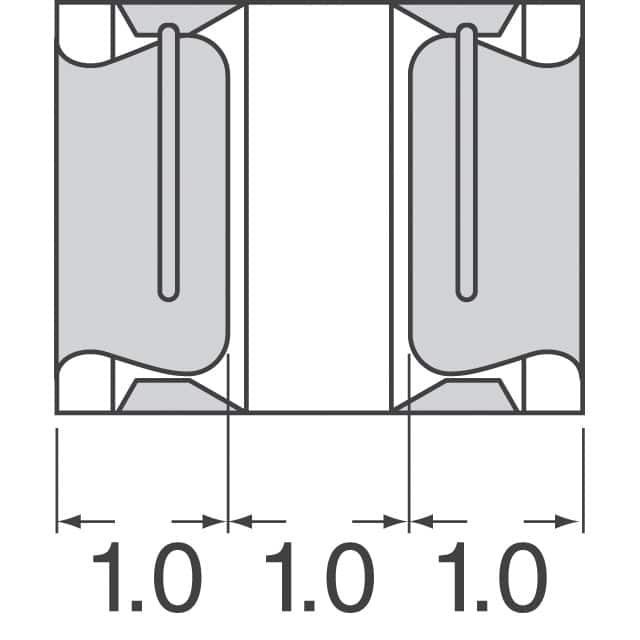

长度 4.5 mm

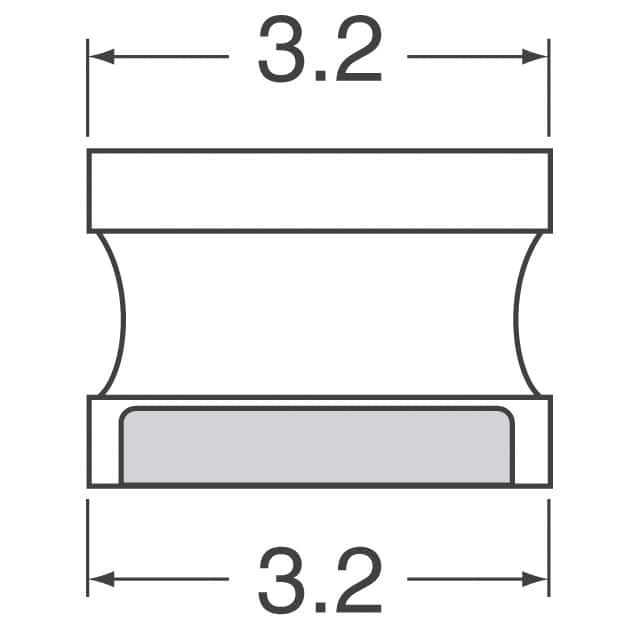

宽度 3.2 mm
高度 2.6 mm
封装公制 4532
封装 1812
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 500
RoHS标准 RoHS Compliant
含铅标准 Lead Free
