LQH43MN391K03L

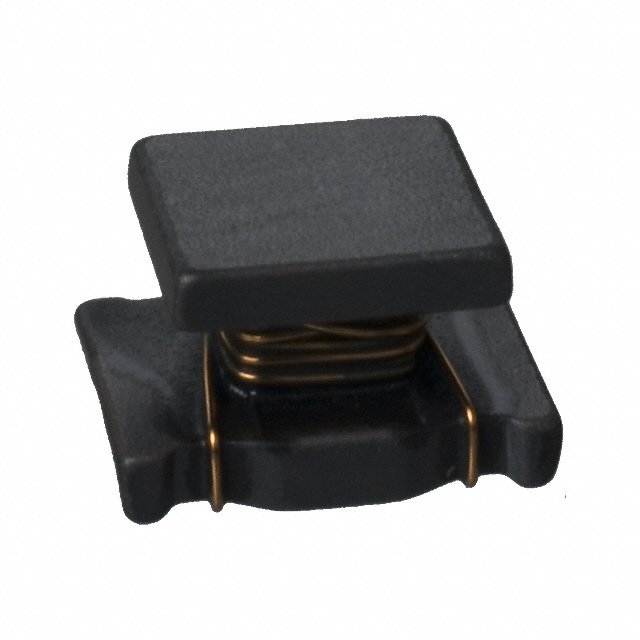

片式电感器（片状线圈）一般用绕线型LQH43M / LQH43N系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH43M/LQH43N Series

值Inductance| 390UH \---|--- 误差Tolerance| ±10% 额定电流Current Rating| 90mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 40 @ 796KHZ 自振谐频率SRFFrequency - Self Resonant| 3.3MHz DC电阻DCRDC Resistance DCR| 9.7Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| LQH43M/N Series LQH43M/N series consists of wound type chip coils for general use by Murata"s original auto winding technology and ferrite core. Features 1. High Q value at high frequency and low DC resistance 2. Wide inductance range from 1.0 to 2200 micro H 3. Large current and large inductance 描述与应用| LQH43M/ N系列 LQH43M/ N系列是采用制作所的原自动绕线技术和铁氧体磁芯线圈绕线型芯片。 特点 1。在高频高Q值和低直流电阻 2。宽泛的电感值范围从1.0到2200微ħ 3。大电流和大电感
