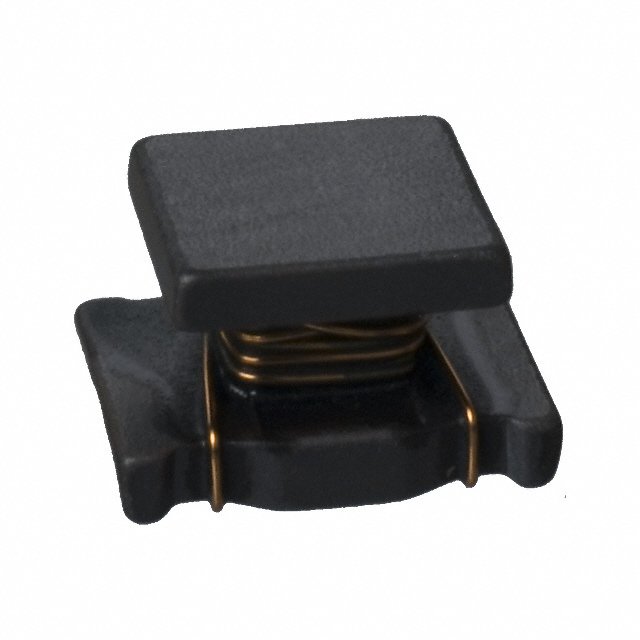

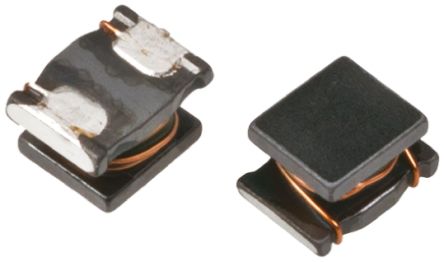

LQH43MN1R0M03L

Murata 1812 LQH43MN 系列线绕电感器线圈贴片式电感器绕在铁氧体磁芯上。 高频率时的质量高。 低直流电阻。 高电流和电感。 ### 表面安装 1812 电感器（扼流圈）

Murata 1812 LQH43MN 系列线绕器

线圈贴片式电感器绕在铁氧体磁芯上。

高频率时的质量高。

低直流电阻。

高电流和电感。

### 表面安装 1812 电感器（扼流圈）

得捷:
FIXED IND 1UH 500MA 200 MOHM SMD

立创商城:
1uH ±20% 200mΩ

欧时:
Murata LQH43MN 系列 铁氧体芯材 1 μH 绕线贴片电感器 LQH43MN1R0M03L, ±20%容差, 500mA Idc Q:20

艾睿:

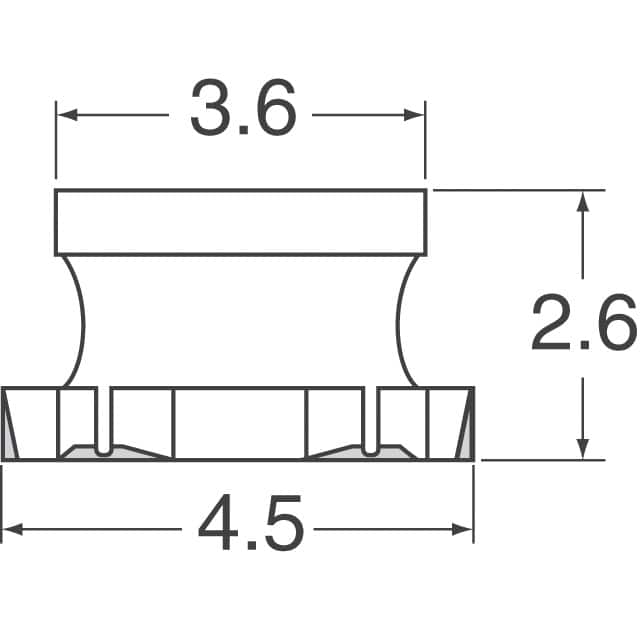

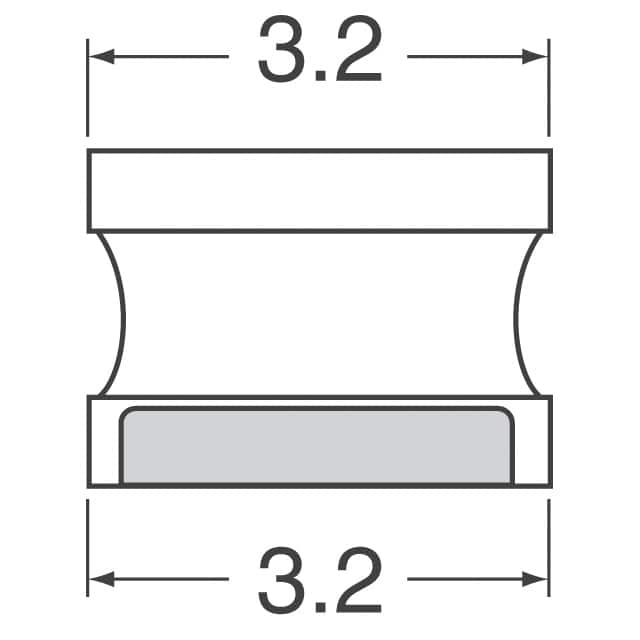

This general purpose chip LQH43MN1R0M03L surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has an operating temperature range of -40 °C to 85 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 120M Hz. It has an inductance of 1u H. It has a tolerance of 20%. This product is 4.8 mm long, 2.8 mm tall and 3.4 mm deep. This SMD inductor has a maximum DC current of 500m A with a maximum resistance of 200m Ohm.

安富利:
Ind General Purpose Chip Unshielded Wirewound 1uH 20% 1MHz 20Q-Factor Ferrite 500mA 1812 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 1uH 20% 1MHz 20Q-Factor Ferrite 500mA 200mOhm DCR 1812 T/R

Verical:
Inductor General Purpose Chip Unshielded Wirewound 1uH 20% 1MHz 20Q-Factor Ferrite 0.5A 0.2Ohm DCR 1812 T/R

儒卓力:
**LQH43MN 1,0uH 500mA 20% WWT **

Win Source:
FIXED IND 1UH 500MA 200 MOHM SMD
