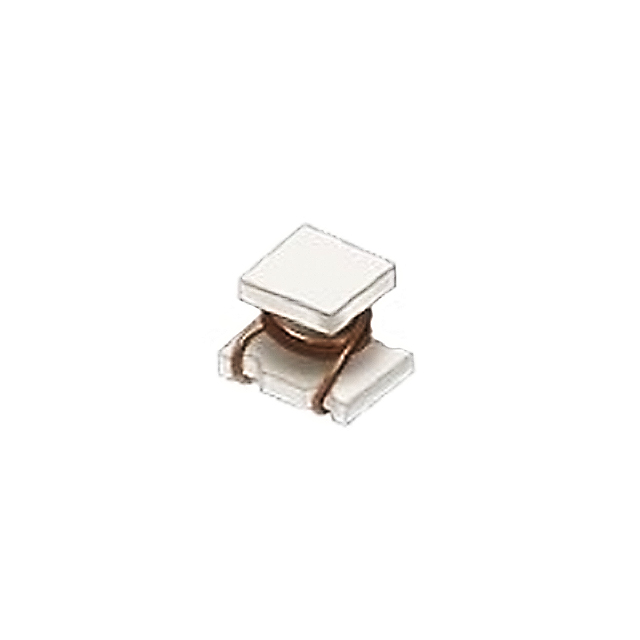

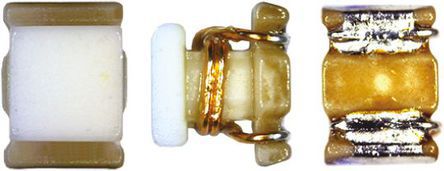

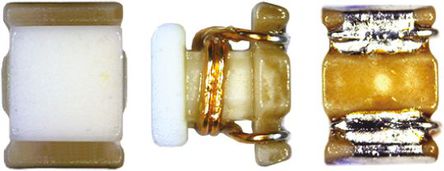

LQW2BHNR12G03L

Murata 0805 LQW2BH 系列线绕电感器工作温度：-40 → +85°C 尺寸：2.0 x 1.5 x 1.75 mm 封装类型：0805 ### 表面安装 0805 电感器（扼流圈）

Murata 0805 LQW2BH 系列线绕器

工作温度：-40 → +85°C

尺寸：2.0 x 1.5 x 1.75 mm

封装类型：0805

立创商城:
120nH ±2% 400mΩ

得捷:
FIXED IND 120NH 320MA 400MOHM SM

欧时:
Murata LQW2BH 系列 铁氧体芯材 120 nH 绕线贴片电感器 LQW2BHNR12G03L, ±2%容差, 320mA Idc Q:40

艾睿:
This rf chip LQW2BHNR12G03L surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 320m A with a maximum resistance of 400m Ohm. This product is 2.2 mm long, 1.78 mm tall and 1.7 mm deep. This device utilizes wirewound technology. It has an inductance of 120n H. It has a tolerance of 2%. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 750M Hz.

安富利:
Ind RF Chip Wirewound 120nH 2% 100MHz 40Q-Factor Air 320mA 0805 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 120nH 2% 100MHz 40Q-Factor Air 320mA 400mOhm DCR 0805 Embossed T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.12uH 2% 100MHz 40Q-Factor Non Magnetic 0.32A 0.4Ohm DCR 0805 T/R

儒卓力:
**LQW2BH 120nH 320mA 20% WWT **
