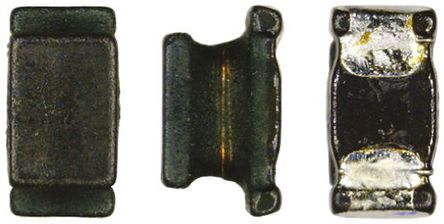

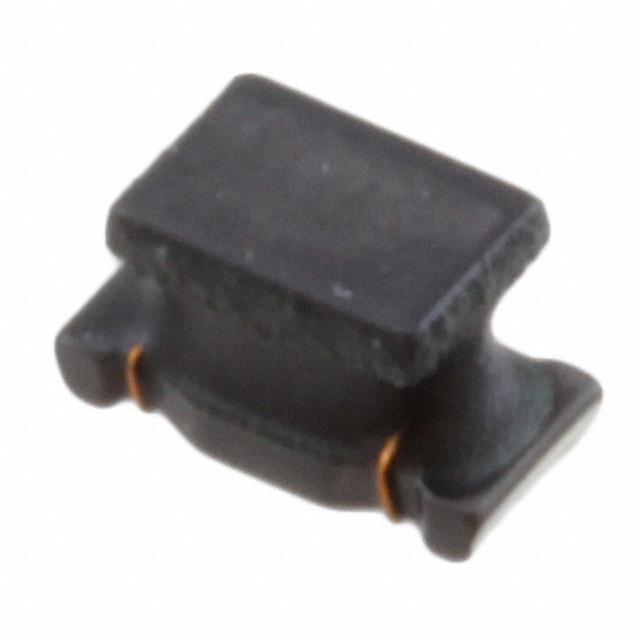

LQH31MN3R3K03L

Murata 1206 LQH31MN 系列线绕电感器广泛的电感范围 高频率时的高 Q 值和低直流阻抗 小型 3.2x1.6x1.8mm 和紧密间距安装 低直流电阻和高电流 流动和回流耐热焊接 ### SMT 1206 电感器（扼流圈）

固定器

立创商城:
3.3uH ±10% 610mΩ

得捷:
FIXED IND 3.3UH 130MA 793MOHM SM

欧时:
Murata LQH31MN 系列 3.3 μH 绕线贴片电感器 LQH31MN3R3K03L, ±10%容差, 130mA Idc Q:35

贸泽:
Fixed Inductors 3.3uH 10%

艾睿:
Make any circuit look clean and compact using this general purpose chip LQH31MN3R3K03L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 130m A with a maximum resistance of 793m Ohm. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. It has an inductance of 3.3u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 38M Hz. This device utilizes wirewound technology.

安富利:
Ind General Purpose Chip Unshielded Wirewound 3.3uH 10% 1MHz 35Q-Factor Ferrite 130mA 1206 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 3.3uH 10% 1MHz 35Q-Factor Ferrite 130mA 793mOhm DCR 1206 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 3.3uH 10% 1MHz 35Q-Factor Ferrite 0.13A 0.793Ohm DCR 1206 T/R

Win Source:
3.3μH Unshielded Wirewound Inductor 130mA 793 mOhm Max 1206 3216 Metric
