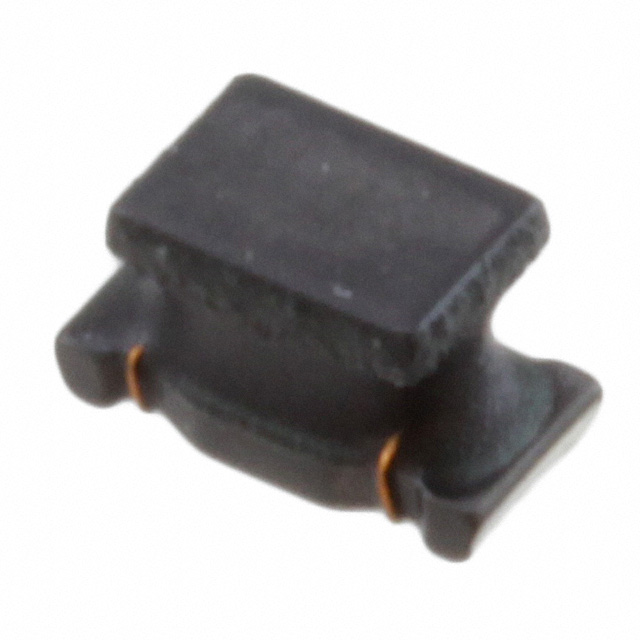

LQH31MN150J03L

片式电感器（片状线圈）一般用绕线型LQH31M系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH31M Series

15µH Unshielded Wirewound Inductor 90mA 3.9Ohm Max 1206 3216 Metric

立创商城:
15uH ±5% 3Ω

得捷:
FIXED IND 15UH 90MA 3.9 OHM SMD

艾睿:
Make any circuit look clean and compact using this general purpose chip LQH31MN150J03L surface mount inductor from Murata. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 90m A with a maximum resistance of 3.9 Ohm. It has an inductance of 15u H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 16M Hz. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. It has a tolerance of 5%.

安富利:
Ind General Purpose Chip Unshielded Wirewound 15uH 5% 1MHz 35Q-Factor Ferrite 90mA 1206 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 15uH 5% 1MHz 35Q-Factor Ferrite 90mA 3.9Ohm DCR 1206 T/R

Verical:
Inductor General Purpose Chip Unshielded Wirewound 15uH 5% 1MHz 35Q-Factor Ferrite 0.09A 3.9Ohm DCR 1206 T/R
