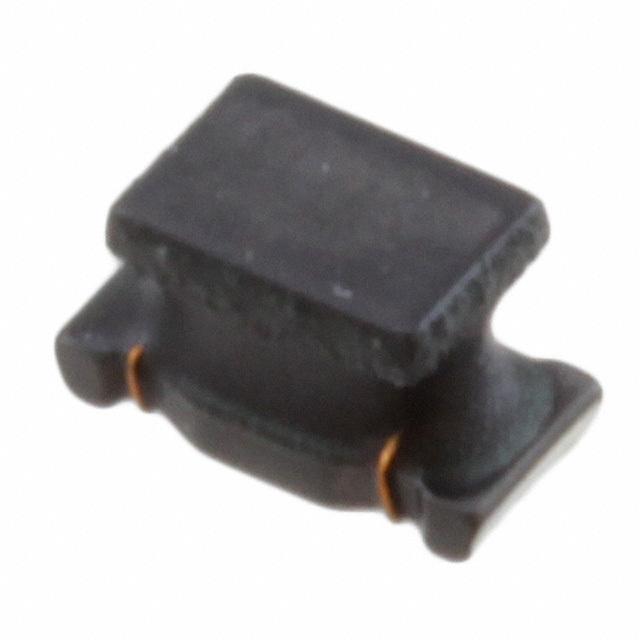

片式电感器(片状线圈)一般用绕线型LQH31M系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH31M Series
值Inductance | 3.3UH \---|--- 误差Tolerance | ±5% 额定电流Current Rating | 130MA 饱和电流Current - Saturation | 不同频率时的Q值Q @ Frequency | 35@8MHZ 自振谐频率SRFFrequency - Self Resonant | 38MHZ DC电阻DCRDC Resistance DCR | 1.4Ω/OHM 屏蔽Shielding | 无屏蔽 Unshielded Description & Applications | LQH31M/LQH32M/LQH43M N Series LQH31M series consists of wound type chip coils using Murata"s original ferrite core and auto winding technology. Features 1. Wide inductance range from 0.15 to 100 micro H 2. High Q value at high frequencies and low DC resistance 3. Small size 3.2x1.6x1.8mm and tight pitch mounting 4. Low DC resistance and large current 5. Both flow and reflow soldering heat resistance 描述与应用 | LQH31M/LQH32M/LQH43M(N)系列 LQH31M系列是采用的原铁氧体磁芯及全自动绕线技术制作的绕线型芯片线圈。 特点 1。宽电感范围为0.15〜100微ħ 2。高Q值在高频率和低直流电阻 3。小尺寸(3.2x1.6x1.8mm)和紧间距安装 4。低直流电阻,大电流 5。流量和回流焊接耐热性
额定电流 130 mA
容差 ±5 %
电感 3.3 µH
自谐频率 38 MHz
产品系列 LQH
电感公差 ±5 %
测试频率 1 MHz
电阻DC) ≤793 mΩ
工作温度Max 85 ℃
工作温度Min -40 ℃
电阻DC Max 0.793 Ω
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 2 mm
封装公制 3216
封装 1206
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
