LQH31HNR88J03L

片式电感器（片状线圈），高频立式绕线型铁氧体 Chip Inductor Chip Coil for High Frequency Vertical Wire Wound Ferrite Type

880nH Unshielded Wirewound Inductor 180mA 1.118Ohm Max 1206 3216 Metric

立创商城:
880nH ±5% 1.118Ω

得捷:
FIXED IND 880NH 180MA 1.118 OHM

贸泽:
Fixed Inductors 1206 0.88uH +/-5% Chip Inductor

艾睿:

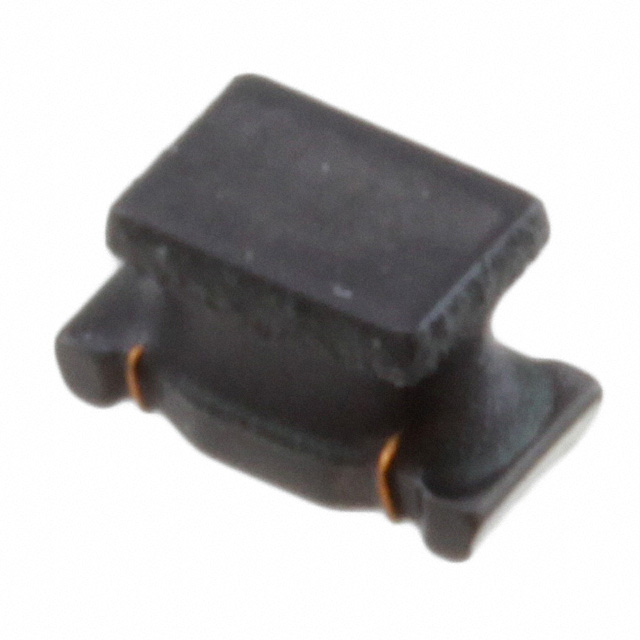

This rf chip LQH31HNR88J03L surface mount inductor from Murata is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has an inductance of 880n H. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 200M Hz. This SMD inductor has a maximum DC current of 180m A with a maximum resistance of 1.118 Ohm. It has a tolerance of 5%. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep.

安富利:
Ind RF Chip Wirewound 880nH 5% 1MHz 60Q-Factor Ferrite 180mA 1206 Embossed T/R

Chip1Stop:
Inductor RF Chip Wirewound 880nH 5% 1MHz 60Q-Factor Ferrite 180mA 1.118Ohm DCR 1206 T/R

Verical:
Inductor High Frequency Chip Wirewound 0.88uH 5% 1MHz 60Q-Factor Ferrite 0.18A 1.118Ohm DCR 1206 T/R
