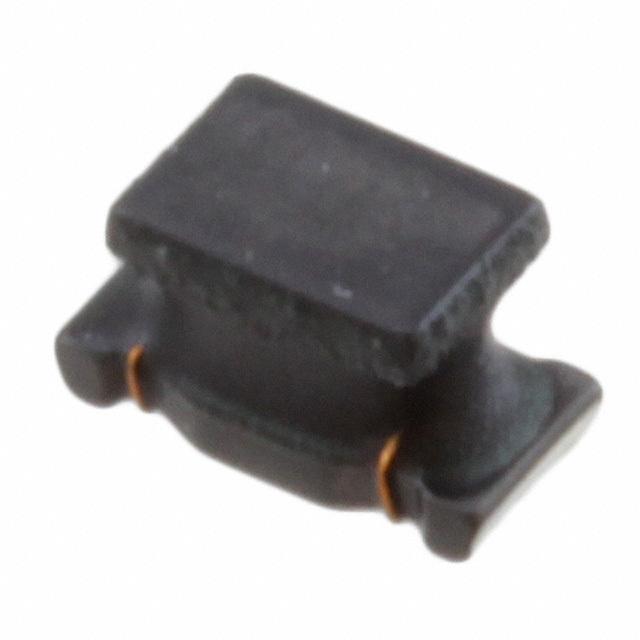

LQH31HNR61J03L

1206 610nH ±5%

610nH Unshielded Wirewound Inductor 250mA 624mOhm Max 1206 3216 Metric

立创商城:
610nH ±5% 480mΩ

得捷:
FIXED IND 610NH 250MA 624MOHM SM

艾睿:
Save valuable space on a PCB with this rf chip LQH31HNR61J03L surface mount inductor from Murata. This SMD inductor has an operating temperature range of -40 °C to 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 240M Hz. It has an inductance of 610n H. This SMD inductor has a maximum DC current of 250m A with a maximum resistance of 624m Ohm. It has a tolerance of 5%.

安富利:
Ind RF Chip Wirewound 610nH 5% 1MHz 60Q-Factor Ferrite 250mA 1206 Embossed T/R

Verical:
Inductor High Frequency Chip Wirewound 0.61uH 5% 1MHz 60Q-Factor Ferrite 0.25A 0.624Ohm DCR 1206 T/R
