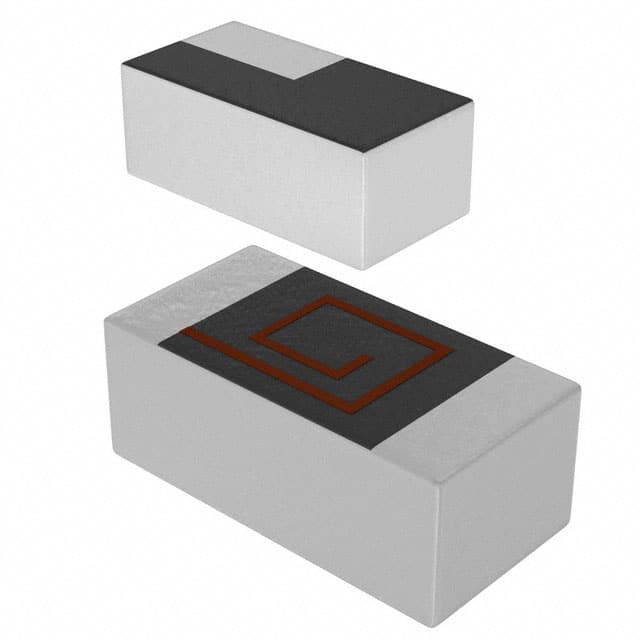

L06032R7CGSTR

0603 2.7 nH ±0.2 nH 容差 750 mA 表面贴装 高频 射频电感

无屏蔽 薄膜 器 80 毫欧最大 0603（1608 公制）

得捷:
FIXED IND 2.7NH 750MA 80MOHM SMD

贸泽:
固定电感器 2.7nH CASE SIZE 0603

艾睿:

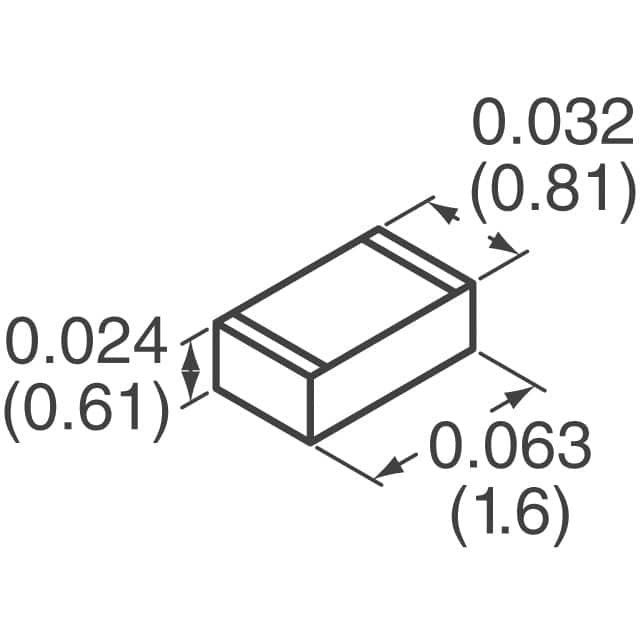

Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip L06032R7CGSTR surface mount inductor from AVX to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 450M Hz, while its minimum self-resonant frequency is 9G Hz. It has an inductance of 2.7n H. This device is made with thin film multilayer technology. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 80m Ohm. This product is 1.7 mm long, 0.71 mm tall and 0.91 mm deep.

富昌:
0603 2.7 nH ±0.2 nH Tolerance 750 mA Surface Mount High-Q RF Inductor

Verical:
Inductor RF Chip Thin Film Multilayer 0.0027uH 0.2nH 450MHz 21Q-Factor Non Magnetic 0.75A 0.08Ohm DCR 0603 Automotive T/R

儒卓力:
**L0603 2,7nH 750mA +/-0,2nH TFT **
