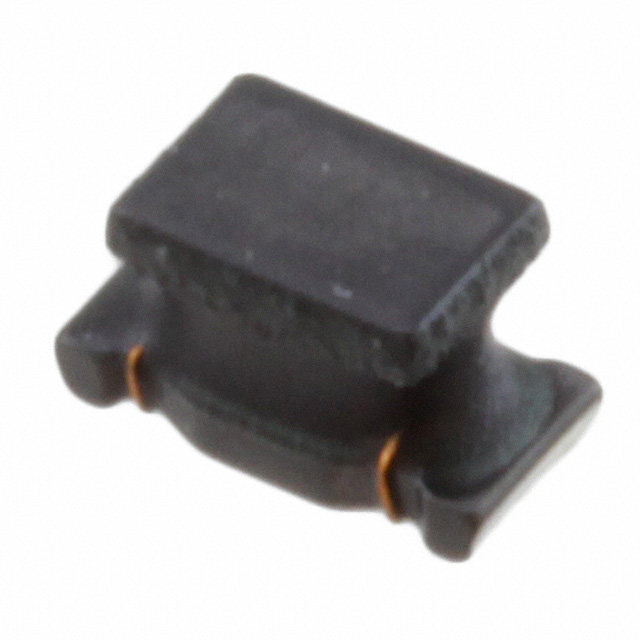

LQH31MN8R2J03L

片式电感器（片状线圈）一般用绕线型LQH31M系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH31M Series

8.2µH Unshielded Wirewound Inductor 105mA 2.86Ohm Max 1206 3216 Metric

立创商城:
8.2uH ±5% 2.2Ω

得捷:
FIXED IND 8.2UH 105MA 2.86OHM SM

艾睿:
This general purpose chip LQH31MN8R2J03L surface mount inductor from Murata is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has an inductance of 8.2u H. This SMD inductor has a maximum DC current of 105m A with a maximum resistance of 2.86 Ohm. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep. This device utilizes wirewound technology. It has a tolerance of 5%. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 23M Hz.

安富利:
Ind General Purpose Chip Unshielded Wirewound 8.2uH 5% 1MHz 35Q-Factor Ferrite 105mA 1206 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 8.2uH 5% 1MHz 35Q-Factor Ferrite 105mA 2.86Ohm DCR 1206 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 8.2uH 5% 1MHz 35Q-Factor Ferrite 0.105A 2.86Ohm DCR 1206 T/R
