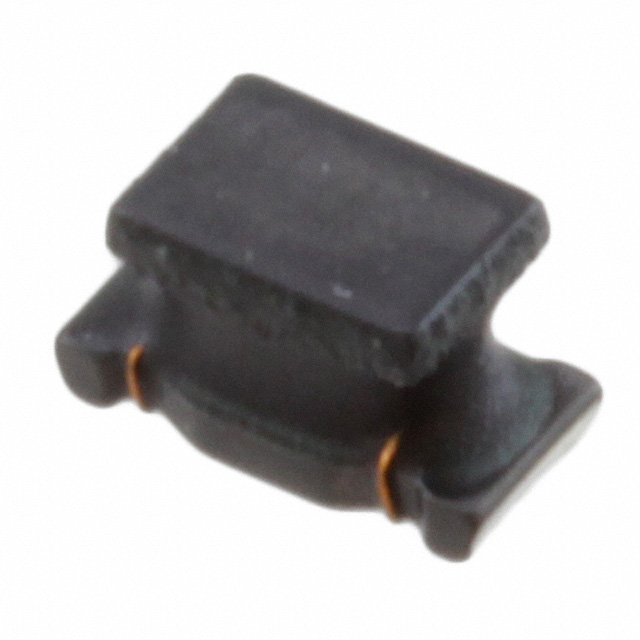

LQH31MN470J03L

片式电感器（片状线圈）一般用绕线型LQH31M系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH31M Series

47µH Unshielded Wirewound Inductor 55mA 8Ohm 1206 3216 Metric

得捷:
FIXED IND 47UH 55MA 8 OHM SMD

艾睿:
Use this general purpose chip LQH31MN470J03L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has an inductance of 47u H. It has a tolerance of 5%. This SMD inductor has a maximum DC current of 55m A with a maximum resistance of 10.4 Ohm. This device utilizes wirewound technology. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 10M Hz. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep.

安富利:
Ind General Purpose Chip Unshielded Wirewound 47uH 5% 1MHz 40Q-Factor Ferrite 55mA 1206 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 47uH 5% 1MHz 40Q-Factor Ferrite 55mA 10.4Ohm DCR 1206 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 47uH 5% 1MHz 40Q-Factor Ferrite 0.055A 10.4Ohm DCR 1206 T/R
