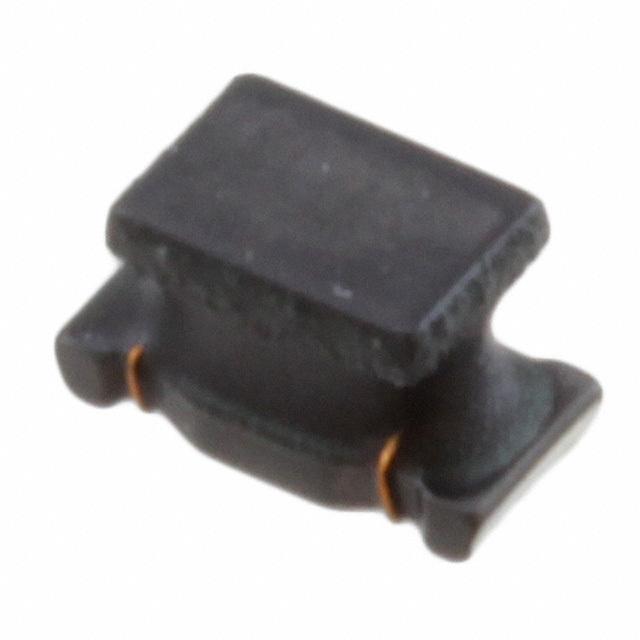

LQH31MNR68K03L

片式电感器（片状线圈）一般用绕线型LQH31M系列 Chip Inductor Chip Coil for General Use Wire Wound Type LQH31M Series

680nH Unshielded Wirewound Inductor 190mA 938mOhm Max 1206 3216 Metric

立创商城:
680nH ±10% 670mΩ

得捷:
FIXED IND 680NH 190MA 938MOHM SM

艾睿:
Use this general purpose chip LQH31MNR68K03L surface mount inductor from Murata to make any circuit look clean and compact. This SMD inductor has an operating temperature range of -40 °C to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. It has a tolerance of 10%. It has an inductance of 680n H. Its test frequency is 1M Hz, while its minimum self-resonant frequency is 160M Hz. This SMD inductor has a maximum DC current of 190m A with a maximum resistance of 938m Ohm. This device utilizes wirewound technology. This product is 3.5 mm long, 2 mm tall and 1.8 mm deep.

安富利:
Ind General Purpose Chip Unshielded Wirewound 680nH 10% 1MHz 30Q-Factor Ferrite 190mA 1206 Embossed T/R

Chip1Stop:
Inductor General Purpose Chip Unshielded Wirewound 680nH 10% 1MHz 30Q-Factor Ferrite 190mA 938mOhm DCR 1206 T/R

Verical:
Inductor General Purpose Chip Unshielded Wirewound 0.68uH 10% 1MHz 30Q-Factor Ferrite 0.19A 0.938Ohm DCR 1206 T/R

Win Source:
680nH Unshielded Wirewound Inductor 190mA 938 mOhm Max 1206 3216 Metric
