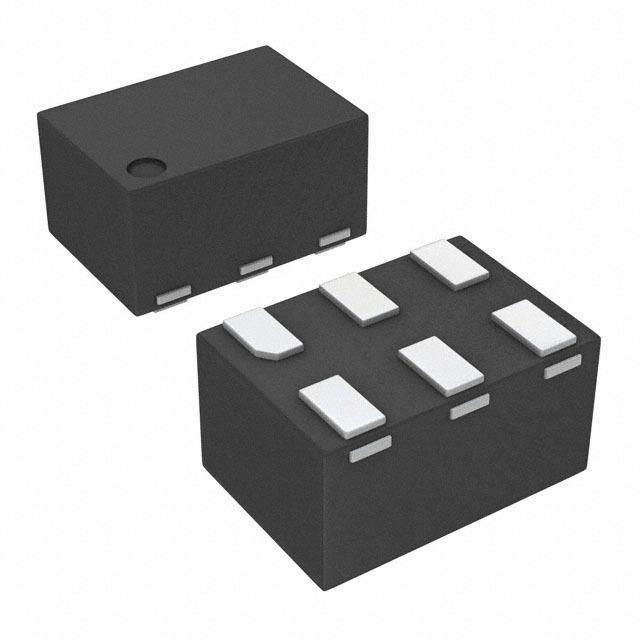

TEXAS INSTRUMENTS LSF0101DRYR 芯片, 多电平转换器, SON-6
电压电平 转换器 双向 1 电路 1 通道 - 6-SON(1.45x1)
得捷:
IC TRANSLTR BIDIRECTIONAL 6SON
立创商城:
LSF0101DRYR
德州仪器TI:
Single bi-directional multi-voltage level translator
贸泽:
Translation - Voltage Levels SGL/Dual Bi-Direct MltiVTG Level Tnsltr
e络盟:
电压电平转换器, 1输入, 1.5 ns, 0 V至5 V, SON-6
艾睿:
The Texas Instruments LSF0101DRYR level translator can control and allow the proper input voltage into your electronic circuits. With an open drain output, this is power management at its best. This level shifter has a minimum operating temperature of -40 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device has a typical operating supply voltage of 1.8|2.5|3.3|5/2.5|3.3 V. Its minimum operating supply voltage of 1/1.8 V, while its maximum is 4.5/5.5 V.
安富利:
Voltage Level Translator 6-Pin SON T/R
Verical:
Voltage Level Translator 1-CH Bidirectional 6-Pin USON T/R
Newark:
# TEXAS INSTRUMENTS LSF0101DRYR Voltage Level Translator, 1 Input, 1.5 ns, 0 V to 5 V, SON-6
DeviceMart:
IC LEVEL TRANSLATOR BIDIR 6SON
电源电压DC 0.00Vmin, 5.00Vmax
电路数 1
通道数 1
针脚数 6
位数 1
传送延迟时间 1.30 ns
输入数 1
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压Max 5 V
电源电压Min 0 V
安装方式 Surface Mount
引脚数 6
封装 UFDFN-6
高度 0.55 mm
封装 UFDFN-6
工作温度 -40℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 车用, 通信与网络, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
