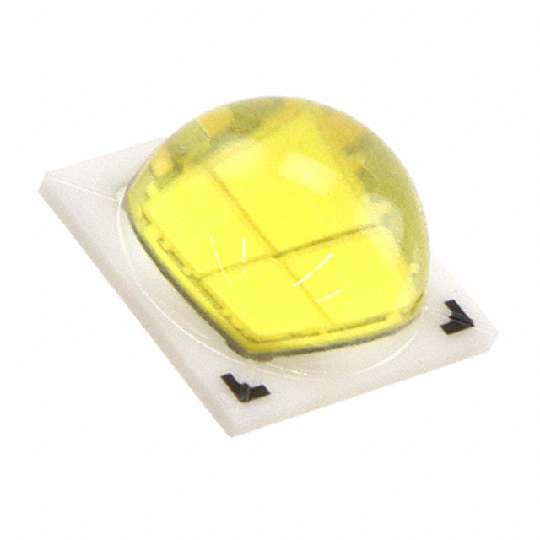

LUXEON M 6 V 大功率 表面贴装 LED 发射体 4000K 780 lm 最小值 700 mA
照明 series 白色,天然 4000K 5.6V 1.4A 120° 2828(7070 公制)
得捷:
LED LUXEON NEU WHITE 4000K 2SMD
贸泽:
High Power LEDs - White Neutral White, 4000K 780lm, 1400mA, 80CRI
艾睿:
LED Uni-Color White 2-Pin SMD T/R
安富利:
LED Uni-Color White 920lm 4000K Chip LED 3-Pin SMD T/R
Verical:
LED Uni-Color White 4000K 80 2-Pin SMD T/R
正向电压 5.6 V
视角 120°
热阻 1.25 ℃/W
测试电流 1.4 A
正向电流 1400 mA
正向电压Max 6 V
正向电流Max 2400 mA
工作温度Max 120 ℃
工作温度Min 40 ℃
安装方式 Surface Mount
引脚数 2
封装 SMD-2
长度 7 mm
宽度 7 mm
高度 3.75 mm
封装 SMD-2
颜色 White
工作温度 -40℃ ~ 135℃
产品生命周期 Discontinued at Digi-Key
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
