LQW18AN75NG00D

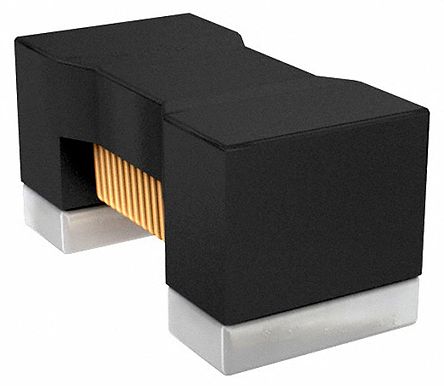

MURATA  LQW18AN75NG00D  表面贴装高频电感器, LQW18A_00系列, 75 nH, ± 2%, 0603 [1608 公制], 2.05 GHz, 0.56 ohm

固定器

得捷:
FIXED IND 75NH 270MA 560MOHM SMD

立创商城:
75nH ±2% 560mΩ

欧时:
Murata LQW18A 系列 铁氧体芯材 75 nH 绕线贴片电感器 LQW18AN75NG00D, ±2%容差, 270mA Idc Q:34

e络盟:
高频电感器, 75 nH, LQW18A_00系列, 270 mA, 0603 [1608 公制], 绕线, 0.56 ohm

艾睿:
This rf chip LQW18AN75NG00D surface mount inductor from Murata is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with wirewound technology. This SMD inductor has a maximum DC current of 270m A with a maximum resistance of 560m Ohm. It has a tolerance of 2%. It has an inductance of 75n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 2.05G Hz. This product is 1.8 mm long, 1 mm tall and 1 mm deep.

安富利:
Ind RF Chip Wirewound 75nH 2% 100MHz 34Q-Factor 270mA 0603 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 75nH 2% 100MHz 34Q-Factor 270mA 560mOhm DCR 0603 Paper T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.075uH 2% 100MHz 34Q-Factor Non Magnetic 0.27A 0.56Ohm DCR 0603 T/R

Win Source:
FIXED IND 75NH 270MA 560 MOHM
