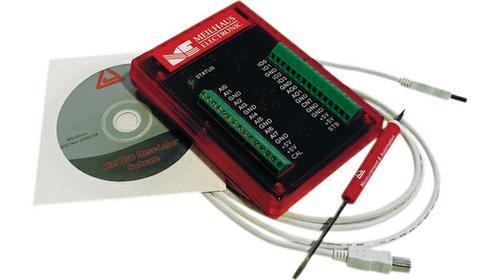

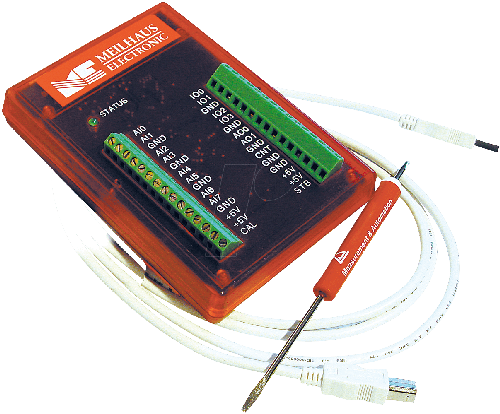

LABJACK U12

MEILHAUS  LABJACK U12  小型测量仪, USB

The LabJack U12 has 8 screw terminals for analogue input signals AI0-AI7. These can be configured individually as 8 single-ended channels, 4 differential channels, or combinations in between. Each input has a ±10 volt input range, 12-bit resolution, and an input bias current of ±90 microamps. Differential channels can make use of the low noise precision PGA to provide gains up to 20.

.

8 Single-Ended, 4 Differential 12-Bit Analogue Inputs

.

±10 Volt Analogue Input Range

.

PGA with Gains of 1, 2, 4, 5, 8, 10, 16, or 20 V/V

.

Up to 8 kSamples/Sec Burst or 1.2 kSamples/Second Stream

.

Supports Software or Hardware Timed Acquisition

.

2 Analogue Outputs

.

20 Digital I/O Up to 50 Hz per I/O

.

32-Bit Counter

.

Watchdog Timer Function

.

USB 2.0/1.1 Low Speed HID Interface

.

Connect Up to 80 LabJacks to One USB Host

.

Complete Software Control, No Jumpers or Switches

.

No Power Supply Needed
