LGN2D471MELZ30

470uF ±20% 200V 1480mA Φ22mm

470µF 200V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C

立创商城:
470uF ±20% 200V

得捷:
CAP ALUM 470UF 20% 200V SNAP

贸泽:
Aluminum Electrolytic Capacitors - Snap In 200volts 470uF 105c 22x30x10L/S

艾睿:

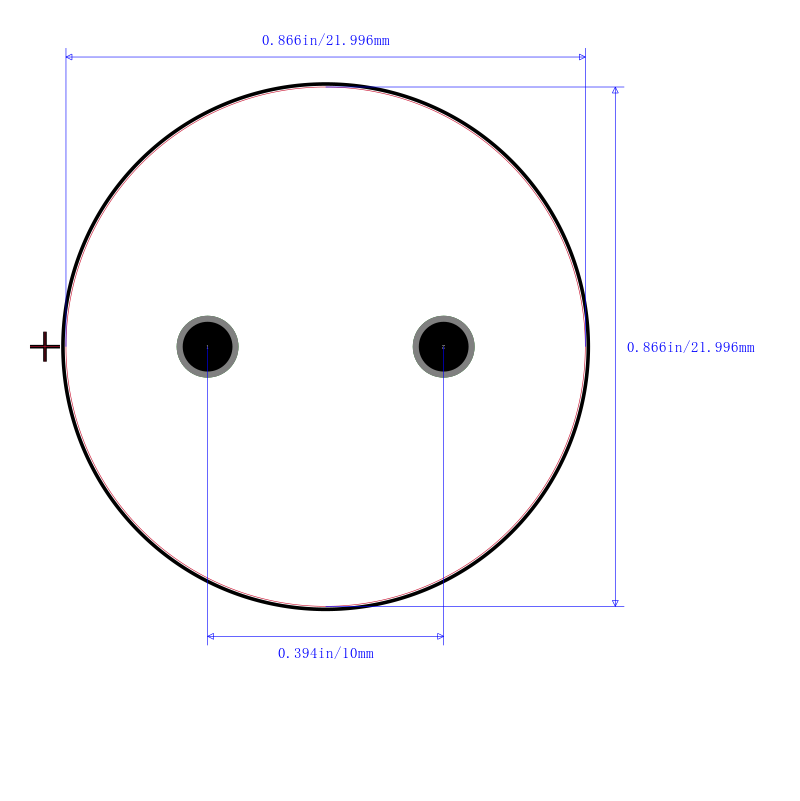

This electrolytic LGN2D471MELZ30 aluminum capacitor from Nichicon has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. Its leakage current is 910@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. This product is 30 mm tall with a diameter of 22 mm. The LGN2D471MELZ30 aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 470uF.

安富利:
Cap Aluminum 470uF 200V 20% 22 X 30mm 10mm 1480mA 2000 hr 105°C Bulk
