GN 系列 100 uF 450 V 20 % 扣接 铝电解电容

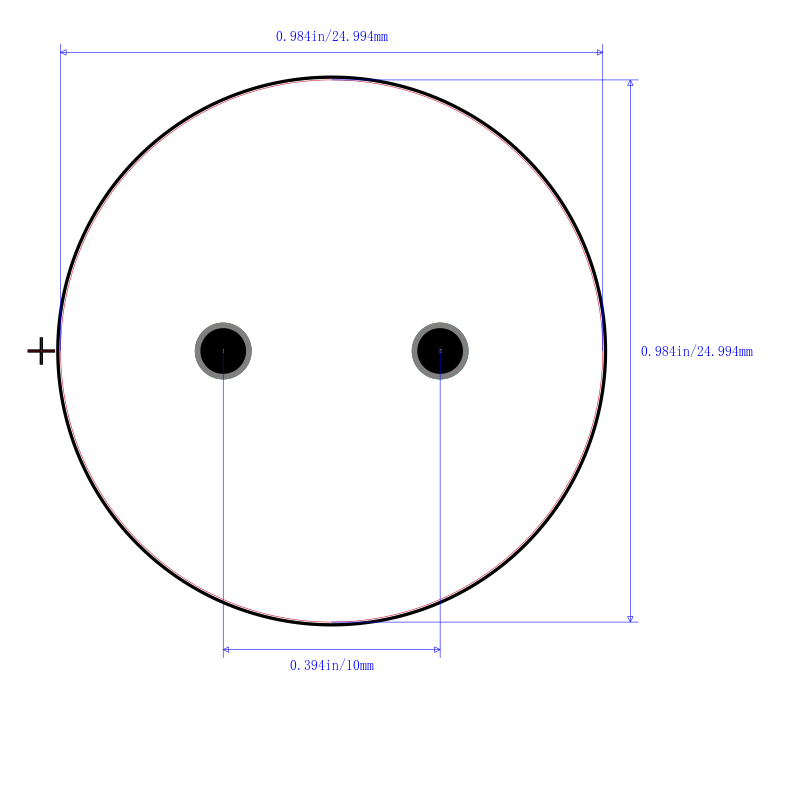

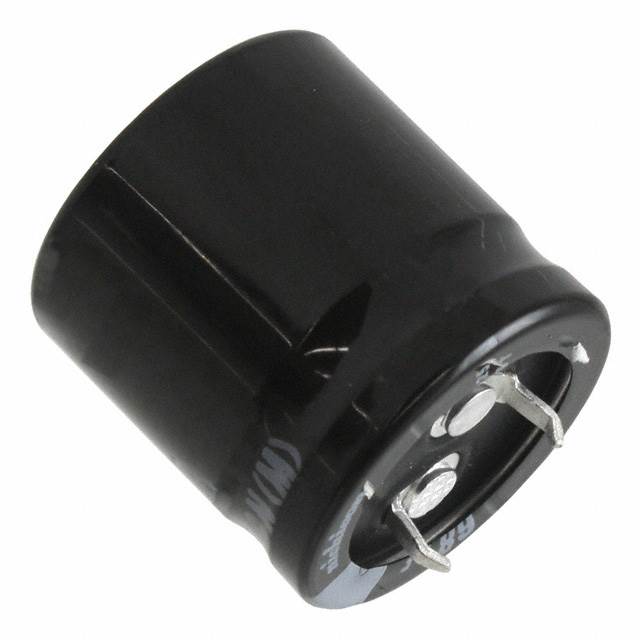

This electrolytic aluminum capacitor from has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 100uF. The LGN2W101MELA25 aluminum electrolytic capacitor has a snap-in termination style. Its leakage current is 630@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. It has a tolerance of 20%. This product is 25 mm tall with a diameter of 25 mm.
额定电压DC 450 V
电容 100 µF
容差 ±20 %
产品系列 LGN
纹波电流 690 mA
纹波电流高频 690mA @120Hz
纹波电流低频 986.7mA @50kHz
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 450 V
安装方式 Through Hole
封装 Snap-In
高度 25 mm
直径 Φ25mm
封装 Snap-In
工作温度 -25℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
最小包装 50
寿命（小时） 3000 h
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
LGN2W101MELA25 Nichicon 尼吉康 | 当前型号 | 当前型号 |
LGU2W101MELA 尼吉康 | 类似代替 | LGN2W101MELA25和LGU2W101MELA的区别 |
LGX2W101MELA25 尼吉康 | 类似代替 | LGN2W101MELA25和LGX2W101MELA25的区别 |
450MXG100MEFCSN25X25 Rubycon | 类似代替 | LGN2W101MELA25和450MXG100MEFCSN25X25的区别 |
