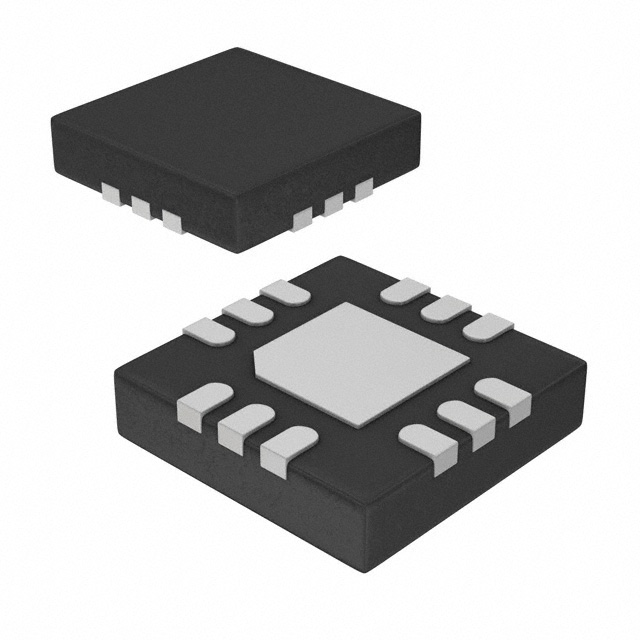

LINEAR TECHNOLOGY LTC4231HUD-2#PBF 芯片, 热拔插控制器, 36V, QFN-12
The is a high voltage micropower hot swap controller in 12 pin QFN package. It allows safe circuit board insertion and removal from live power supply. An internal high side switch driver controls gate of an external N channel MOSFET. The back to back MOSFETs can be used for reverse supply protection down to -40V. The LTC4231-2 provides debounce delay and allows GATE to be ramped up at an adjustable rate. After start-up, the quiescent current drops to 4µA during normal operation with output active. The UVL, UVH, OV and GNDSW pins monitor overvoltage and undervoltage periodically by keeping total quiescent current low. Pulling SHDN low shuts down the LTC4231-2 and quiescent current drops to 0.3µA. The device automatically reapplies power after cool down period.
电源电压DC 2.70V min
供电电流 4 µA
通道数 1
针脚数 12
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 36V
电源电压Max 36 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 12
封装 QFN-12
封装 QFN-12
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Each
制造应用 Portable Devices, 车用, 便携式器材, 通用, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LTC4231HUD-2#PBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LTC4231HUD-2#TRPBF 凌力尔特 | 完全替代 | LTC4231HUD-2#PBF和LTC4231HUD-2#TRPBF的区别 |
