LGW2D821MELB30

820uF ±20% 200V 3480mA Φ30mm

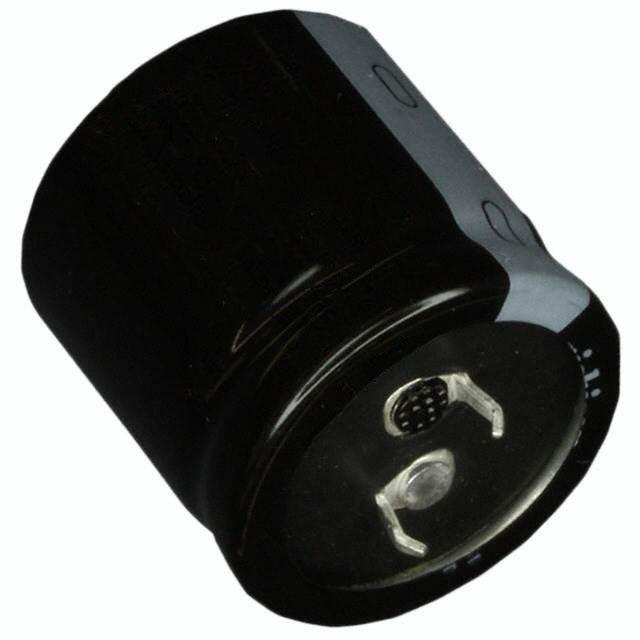

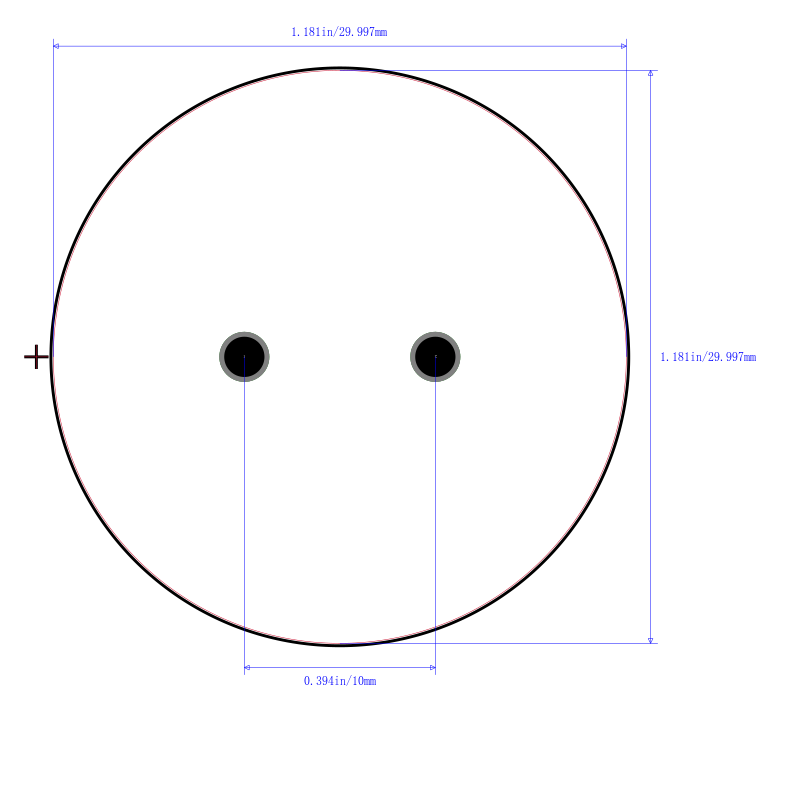

Manufactured from , this electrolytic aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The LGW2D821MELB30 aluminum electrolytic capacitor has a snap-in termination style. Its leakage current is 1210@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its capacitance value is 820uF. This product is 30 mm tall with a diameter of 30 mm. It has a tolerance of 20%.
