LGY2A332MELC40

3.3mF ±20% 100V Φ35mm 40mm

3300µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 5000 Hrs @ 105°C

立创商城:
3300uF ±20% 100V

得捷:
CAP ALUM 3300UF 20% 100V SNAP

艾睿:

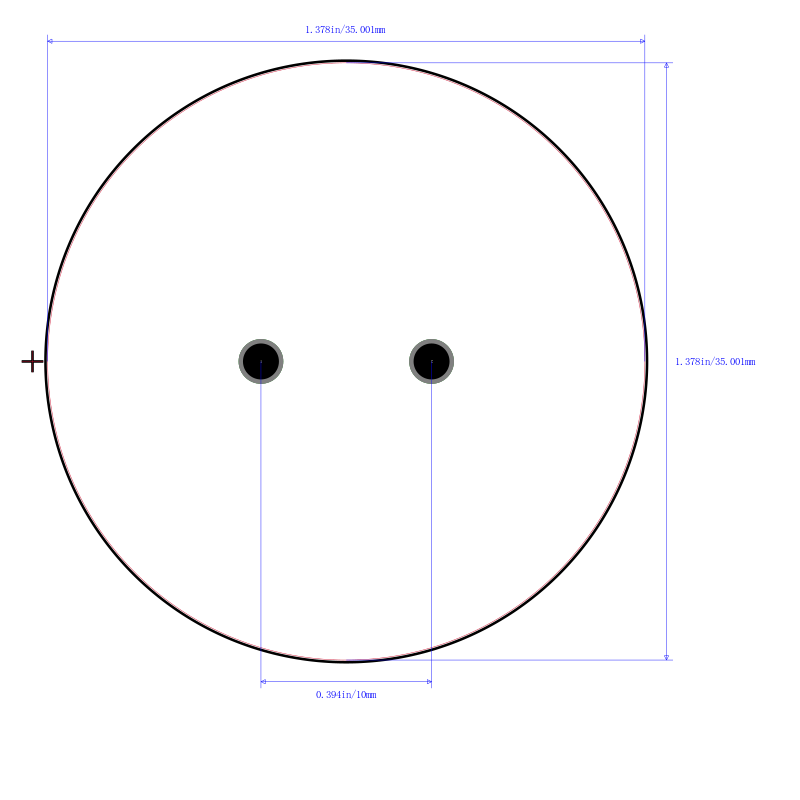

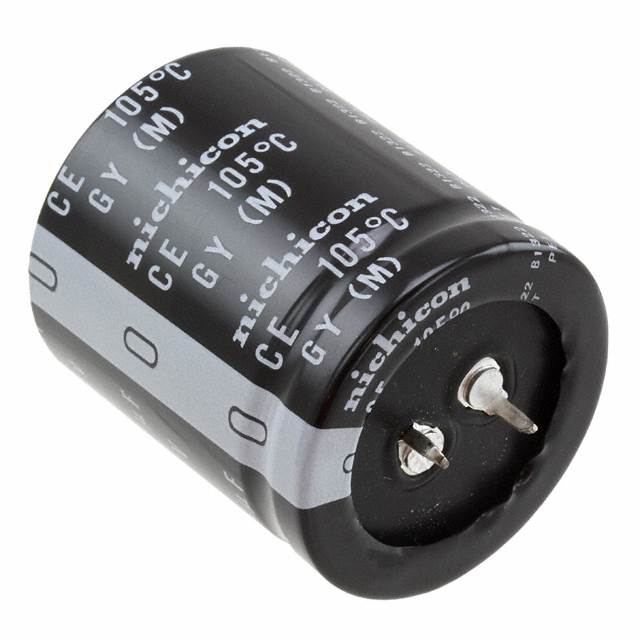

If you need to filter lower signal frequencies, then this electrolytic LGY2A332MELC40 aluminum capacitor, developed by Nichicon, is the tool you need. It can withstand a voltage of 100 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The LGY2A332MELC40 aluminum electrolytic capacitor has a snap-in termination style. Its capacitance value is 3300uF. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. It has a tolerance of 20%. Its leakage current is 1720@5Min μA. This product is 40 mm tall with a diameter of 35 mm.

安富利:
Cap Aluminum 3300uF 100V 20% 35 X 40mm 10mm 2700mA 5000 hr 105°C Bulk
