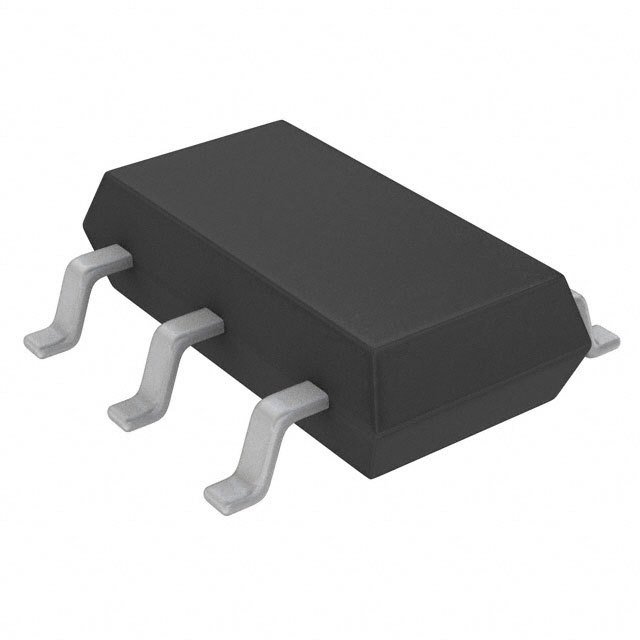

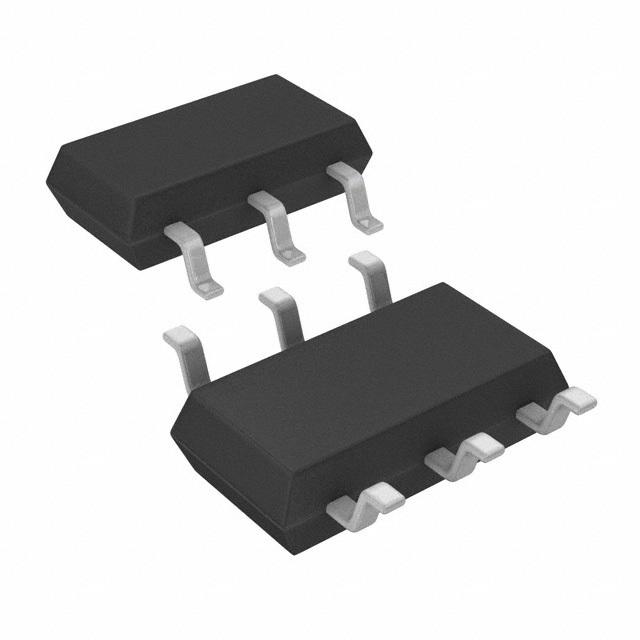

V-Ref Precision 1.25V 10mA Automotive 6Pin TSOT-23 T/R
Even in the event of large power supply variations, this voltage reference power management device from can produce and maintain a precise DC voltage. With an output that has a voltage of 1.25 V, this is power management at its best. It has an initial accuracy of 0.05%. With a voltage no larger than 38 V, this will supply sufficient power to your circuit. This voltage reference circuit supports series topology. To produce a constant current at your output, supply your circuit with a load regulation of 25ppm/mA and line regulation of 5ppm/V. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This voltage reference circuit has an operating temperature range of -55 °C to 125 °C. It runs with a maximum temperature coefficient of 10ppm/°C.
容差 ±0.05 %
输出电压 1.25 V
输出电流 10 mA
供电电流 600 µA
输入电压Max 38 V
输出电压Min 1.25 V
输出电流Max 10 ma
工作温度Max 125 ℃
工作温度Min -55 ℃
输入电压 2.4V ~ 36V
安装方式 Surface Mount
引脚数 6
封装 TSOT-23-6
封装 TSOT-23-6
工作温度 -55℃ ~ 125℃ TA
温度系数 ±10 ppm/℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
LT6654AMPS6-1.25#TRMPBF Linear Technology 凌力尔特 | 当前型号 | 当前型号 |
LT6654AMPS6-1.25#TRPBF 凌力尔特 | 完全替代 | LT6654AMPS6-1.25#TRMPBF和LT6654AMPS6-1.25#TRPBF的区别 |
