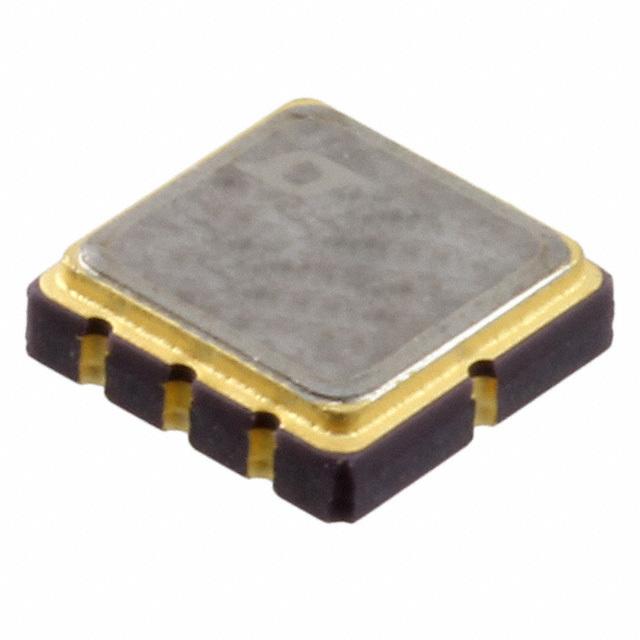

LINEAR TECHNOLOGY LTC6655BHLS8-2.5#PBF 电压基准, 低噪, 低漂移, 系列 - 固定, LTC6655系列, 2.5V, LCC-8
The LTC6655 series low-drift precision band-gap Voltage Reference features exceptional noise and drift performance. This low noise and drift is ideally suited for the high resolution measurements required by instrumentation and test equipment. Advanced curvature compensation allows this band-gap reference to achieve a drift of less than 2ppm/°C with a predictable temperature characteristic and an output voltage accurate to ±0.025%, reducing or eliminating the need for calibration. The LTC6655 can be powered from as little as 500mV above the output voltage to as much as 13.2V. Superior load regulation with source and sink capability, coupled with exceptional line rejection, ensures consistent performance over a wide range of operating conditions. A shutdown mode is provided for low power applications.
容差 ±0.025 %
输入电压DC 3.00V ~ 13.2V
输出电压 2.5 V
输出电流 5 mA
供电电流 7.5 mA
针脚数 8
输入电压Max 13.2 V
输入电压Min 3 V
输出电压Min 2.5 V
输出电流Max 5 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
输入电压 3V ~ 13.2V
安装方式 Surface Mount
引脚数 8
封装 CLCC-8
封装 CLCC-8
工作温度 -40℃ ~ 125℃ TA
温度系数 ±1 ppm/℃
产品生命周期 Active
包装方式 Each
制造应用 Test & Measurement, Power Management, 电源管理, Medical, 传感与仪器, 医用, 测试与测量, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
