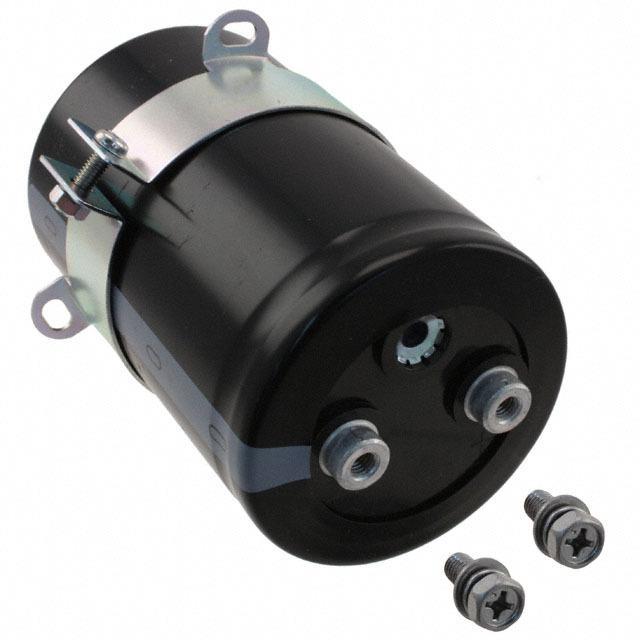

LNC2W222MSEG

2.2mF ±20% 450V Φ63.5mm 85mm

铝电解器 径向，Can - 螺丝端子 - 85°C 时为 5000 小时

立创商城:
2200uF ±20% 450V

得捷:
CAP ALUM 2200UF 20% 450V SCREW

艾睿:
Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Nichicon&s;s electrolytic LNC2W222MSEG aluminum capacitor. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its capacitance value is 2200uF. The LNC2W222MSEG aluminum electrolytic capacitor has a screw terminal termination style. This product is 85 mm tall with a diameter of 63.5 mm. It has a tolerance of 20%. Its leakage current is 2980@5Min μA.

Verical:
Cap Aluminum Lytic 2200uF 450V 20% 63.5 X 85mm Bracket Mount Screw Terminal 12300mA 5000h 85C Bulk

Newark:
# NICHICON  LNC2W222MSEG  Electrolytic Capacitor, Screw, 2200 µF, 450 V, NC Series, ± 20%, Screw, 63.5 mm
