LTM8061IV-8.4#PBF

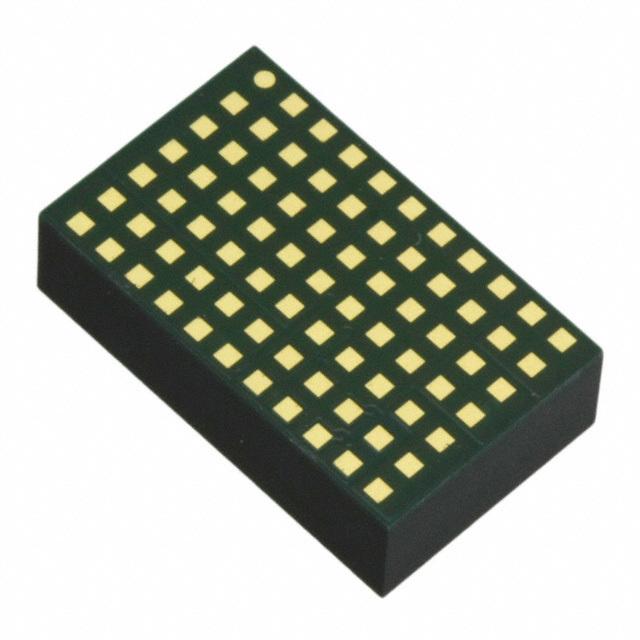

LINEAR TECHNOLOGY  LTM8061IV-8.4#PBF  芯片, 电池充电器, 8.4V, 77LGA

The is a high-efficiency standalone Li-ion Battery Charger optimized for one and two-cell packs. The LTM8061 provides a constant-current/constant-voltage charge characteristic, with maximum charge current up to 2A. A precondition feature trickle charges a depleted battery and bad battery detection provides a signal and suspends charging if a battery does not respond to preconditioning. It can be configured to terminate charging when charge current falls to one-tenth the programmed maximum current or to use an internal timer if a time based termination scheme is desired. Once charging is terminated, the battery charger enters a low current standby mode. An auto-restart feature starts a new charge cycle if the battery voltage drops 2.5% from the float voltage, or if a new battery is inserted into a charging system.

.

Programmable charge current up to 2A

.

User-selectable charge termination - C/10 or on board termination timer

.

Dynamic charge rate programming/soft-start pin

.

Programmable input current limit

.

Optional reverse input protection

.

NTC resistor temperature monitor

.

0.5% Float voltage accuracy

.

Bad-battery detection with auto-reset
