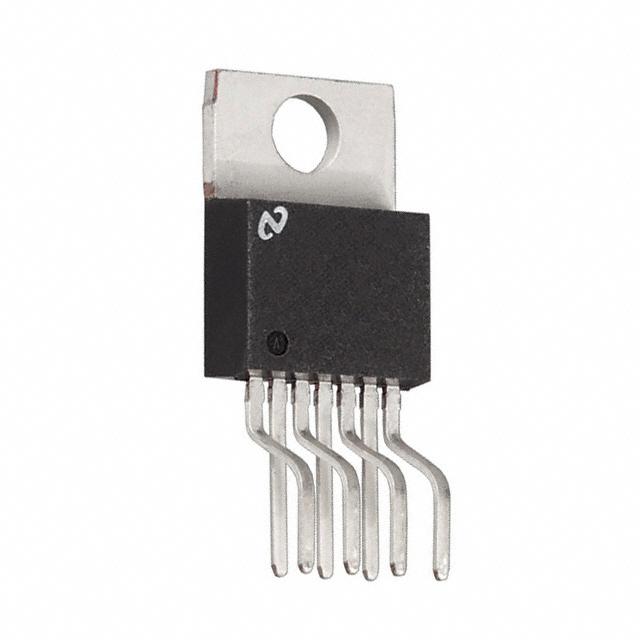

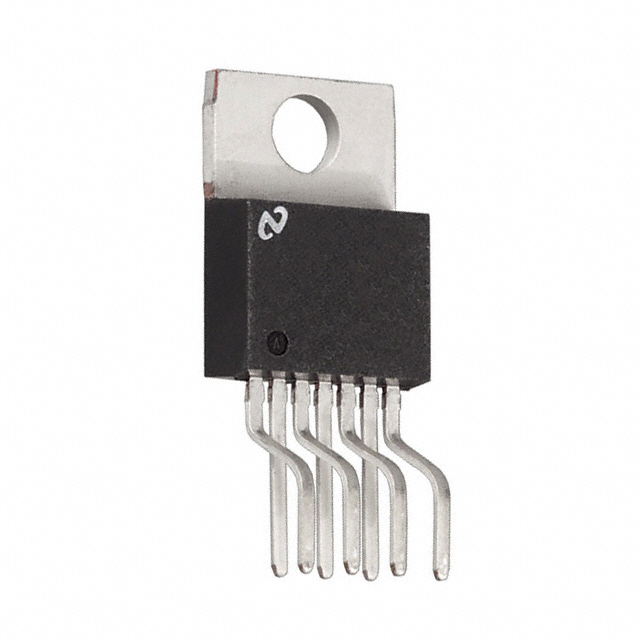

TEXAS INSTRUMENTS LM2588T-ADJ 直流-直流开关升压, 反激稳压器, 可调, 4V-40V输入, 1.23V-12.60V输出, 5A输出, TO-220-7
The is a SIMPLE SWITCHER® Flyback Regulator with shutdown specifically designed for step-up boost and forward converter applications. The device is available in an adjustable output voltage version and requiring a minimum number of external components. The power switch is a 5A NPN device that can stand-off 65V. Protecting the power switch are current and thermal limiting circuits and an under-voltage lockout circuit. This IC contains an adjustable frequency oscillator that can be programmed up to 200kHz. The oscillator can also be synchronized with other devices, so that multiple devices can operate at the same switching frequency. Other features include soft start mode to reduce in-rush current during start up and current mode control for improved rejection of input voltage and output load transients and cycle-by-cycle current limiting. The device also has a shutdown pin, so that it can be turned off externally.
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
频率 200 kHz
电源电压DC 40.0V max
输出接口数 1
输出电压 1.23 V
输出电流 5 A
针脚数 7
静态电流 11.0 mA
调节输出数 1
开关频率 200 kHz
拓扑结构 Boost, Flyback
输入电压Max 40 V
输入电压Min 4 V
输出电压Max 12.6 V
输出电压Min 1.23 V
输出电流Max 5 A
工作温度Max 125 ℃
工作温度Min 40 ℃
输入电压 4V ~ 40V
安装方式 Through Hole
引脚数 7
封装 TO-220-7
封装 TO-220-7
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 电源管理
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
