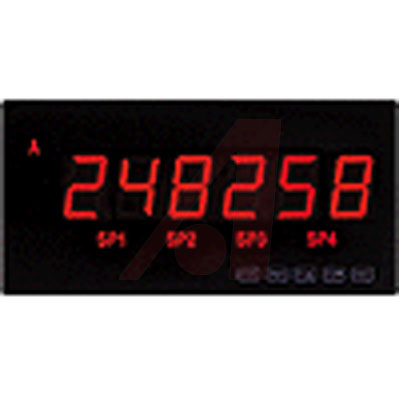

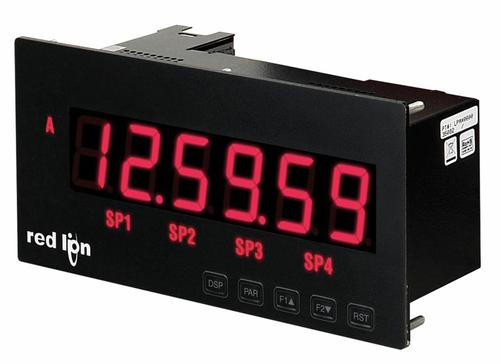

LPAXCK00 - Red Lion Controls Large Display Pax Panel Meter - 6-Digit Large Clock Display Module
The EPAX and LPAX are versatile displays that can increase productivity by offering the plant floor or production area a large visual display of current status. Both series can display voltage, current, process, temperature or strain gage. They both come in 5-digit or 6-digit displays. The EPAX series is a 4" digit while the LPAX is a 1.5" digit. The EPAX and LPAX accepts various analog inputs through the use of input modules MPAX. All of the MPAX numbers below require AC power from 85 to 250 VAC.
To build a complete display you will need an LPAX or EPAX and an MPAX input module. The LPAX and EPAX are only displays and will not operate without the MPAX module.
**Features:**
* Red LED Display
* Requires Various Input Modules, Listed Below, to Operate
* Optional Output Cards — Use PAX Plug-In Cards, Check for Compatibility
* Power Requirements: EPAX and LPAX Modules — Dependent on Input Module; MPAX Modules — 85-250 VAC
* Sealing: NEMA 4/IP65
* Enclosures, Brackets and Shrouds Available
* Other Listings Available
* Programmable Function Keys and User Inputs
* UL Listed
* Cage Clamp Termination
